DA14582 - Bluetooth Low Energy 4.2 SoC

Renesas

📥 Download Datasheet

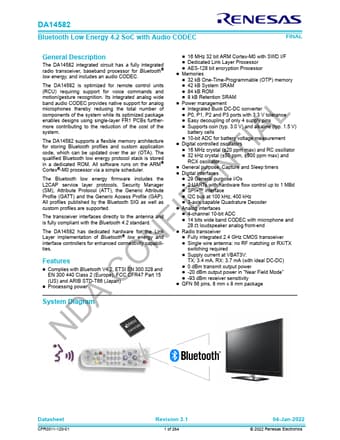

DA14582 Datasheet Preview — Preview of DA14582 PDF

Datasheet Details

Part number	DA14582
Manufacturer	Renesas
File Size	4.18 MB
Description	Bluetooth Low Energy 4.2 SoC
Datasheet	DA14582-Renesas.pdf

DA14582 Product details

Description

16 MHz 32 bit ARM Cortex-M0 with SWD I/F The DA14582 integrated circuit has a fully integrated radio transceiver, baseband processor for Bluetooth® low energy, and includes an audio CODEC. Dedicated Link Layer Processor AES-128 bit encryption Processor Memories 32 kB One-Time-Programmable (OTP) memory The DA14582 is optimized for remote control units 42 kB System SRAM (RCU) requiring support for voice commands and 84 kB ROM motion/gesture recogni

Features

TX: 3.4 mA, RX: 3.7 mA (with ideal DC-DC) O.
Complies with Bluetooth V4.2, ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan) C.
Processing power.
0 dBm transmit output power.
-20 dBm output power in “Near Field Mode”.
-93 dBm receiver sensitivity.
QFN 56 pins, 8 mm x 8 mm package ________________________________________________________________________________________________ NDA System Diagram Datasheet CFR0011-12.
