BCR25KM-12LB Triac

BCR25KM-12LB Description

BCR25KM-12LB Triac Medium Power Use .

BCR25KM-12LB Features

* IT (RMS) : 25 A
* VDRM: 600 V
* IFGTI, IRGTI, IRGTIII: 50 mA
* Viso: 2000 V Outline RENESAS Package code: PRSS0003AB-A (Package name: TO-220FN)
* Insulated Type
* Planar Type 2 3 1 REJ03G1676-0100 Rev.1.00 Jun 05, 2008 1. T1 Terminal 2. T2 Termina

BCR25KM-12LB Applications

* Contactless AC switch, electric heater control, light dimmer, on/off and speed control of small induction motor, on/off control of copier lamp Maximum Ratings Parameter Repetitive peak off-state voltage Note1 Non-repetitive peak off-state voltage Note1 Notes: 1. Gate open. Symbol VDRM VDSM Voltag

📥 Download Datasheet

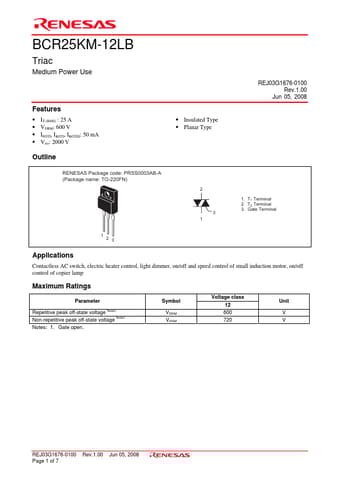

Preview of BCR25KM-12LB PDF
datasheet Preview Page 2 datasheet Preview Page 3
