BCR25A MEDIUM POWER USE NON-INSULATED TYPE/ GLASS PASSIVATION TYPE

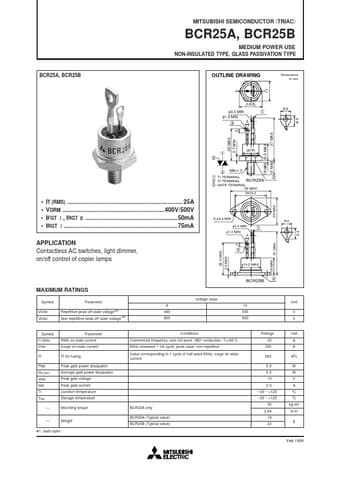

MITSUBISHI SEMICONDUCTOR 〈TRIAC〉 BCR25A, BCR25B MEDIUM POWER USE NON-INSULATED TYPE, GLASS PASSIVATION TYPE BCR25A, BCR25B OUTLINE DRAWING 17 Dimensions in mm (19.6) φ3.3 MIN φ1.3 MIN 3 3 1 8.0 3 29 MAX 3.7 MIN 1 3 (φ14) 1.9 MAX 15.5 MAX 2 M6×1.0 1 T1 TERMINAL BCR25A 2 T2 TERMINAL 3 GATE TERMINAL 39 MAX 30±0.2 IT (RMS) 25A VDRM 400V/500V IFGT !, IRGT # 50mA IRGT ! 75mA 2-φ4.2 MIN φ3.3 MIN φ1.3 MIN 3 26 MAX 13 MAX 37 MAX 2 8.0 1 8.5 .
