BCR25CM-12LB Triac

BCR25CM-12LB Description

BCR25CM-12LB 600V - 25A - Triac Medium Power Use .

BCR25CM-12LB Features

* IT (RMS) : 25 A
* VDRM : 600 V
* IFGTI, IRGTI, IRGT III: 50 mA Data Sheet R07DS1152EJ0200 Rev.2.00 Sep. 11, 2018
* Tj: 150 °C
* Non-insulated Type
* Planar Passivation Type Outline RENESAS Package code: PRSS0004AG-A (Package name: TO-220AB) 4 REN

BCR25CM-12LB Applications

* Maximum Ratings Parameter Repetitive peak off-state voltageNote1 Non-repetitive peak off-state voltageNote1 Symbol VDRM VDSM Voltage class 12 600 720 Unit V V Parameter RMS on-state current Surge on-state current I2t for fusing Peak gate power dissipation Average gate power dissipation Peak g

📥 Download Datasheet

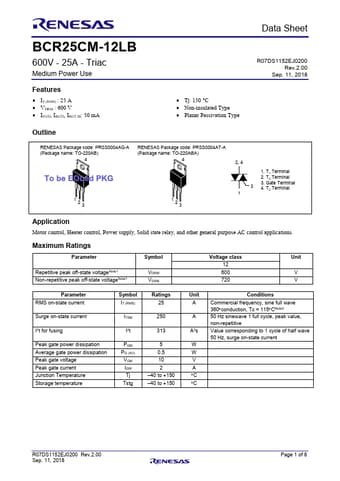

Preview of BCR25CM-12LB PDF
datasheet Preview Page 2 datasheet Preview Page 3
