89HPES32T8G2 - I/O Expansion Switch

Name: 89HPES32T8G2
SKU: 89HPES32T8G2-1480867

Renesas

📥 Download Datasheet

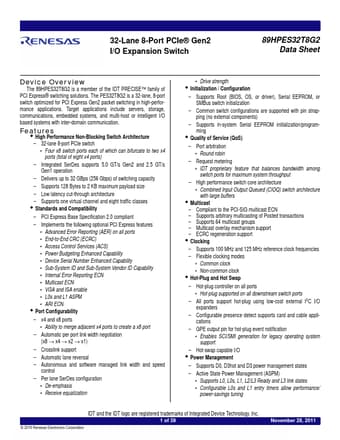

89HPES32T8G2 Datasheet Preview — Preview of 89HPES32T8G2 PDF

Datasheet Details

Part number	89HPES32T8G2
Manufacturer	Renesas
File Size	462.82 KB
Description	I/O Expansion Switch
Datasheet	89HPES32T8G2-Renesas.pdf

89HPES32T8G2 Product details

Description

Utilizing standard PCI Express interconnect, the PES32T8G2 provides the most efficient fan-out solution for applications requiring high throughput, low latency,

Features

High Performance Non-Blocking Switch Architecture.
32-lane 8-port PCIe switch.
Four x8 switch ports each of which can bifurcate to two x4 ports (total of eight x4 ports).
Integrated SerDes supports 5.0 GT/s Gen2 and 2.5 GT/s Gen1 operation.
Delivers up to 32 GBps (256 Gbps) of switching capacity.
Supports 128 Bytes to 2 KB maximum payload size.
Low latency cut-through architecture.
Supports one virtual channel and eight traffic.
