89HPES32NT24BG2 - System Interconnect Switch

Renesas

📥 Download Datasheet

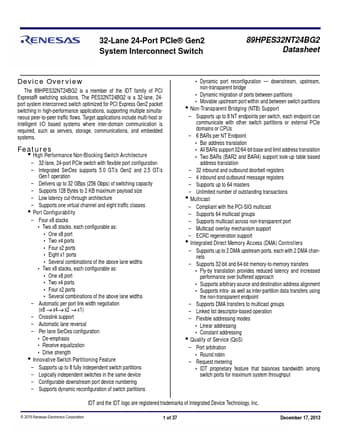

89HPES32NT24BG2 Datasheet Preview — Preview of 89HPES32NT24BG2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	89HPES32NT24BG2
Manufacturer	Renesas
File Size	520.13 KB
Description	System Interconnect Switch
Datasheet	89HPES32NT24BG2-Renesas.pdf

89HPES32NT24BG2 Product details

Features

High Performance Non-Blocking Switch Architecture.
32-lane, 24-port PCIe switch with flexible port configuration.
Integrated SerDes supports 5.0 GT/s Gen2 and 2.5 GT/s Gen1 operation.
Delivers up to 32 GBps (256 Gbps) of switching capacity.
Supports 128 Bytes to 2 KB maximum payload size.
Low latency cut-through architecture.
Supports one virtual channel and eight traffic classes.
Port Configurability.
Four x8 stacks.
