89HPES32NT24AG2 - Gen2 System Interconnect Switch

Features

  • High Performance Non-Blocking Switch Architecture.
  • 32-lane, 24-port PCIe switch with flexible port configuration.
  • Integrated SerDes supports 5.0 GT/s Gen2 and 2.5 GT/s Gen1 operation.
  • Delivers up to 32 GBps (256 Gbps) of switching capacity.
  • Supports 128 Bytes to 2 KB maximum payload size.
  • Low latency cut-through architecture.
  • Supports one virtual channel and eight traffic classes.
  • Port Configurability.
  • Four x8 stacks.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
89HPES32NT24AG2 System Interconnect Switch IDT
89HPES32NT24BG2 System Interconnect Switch IDT
89HPES32NT8AG2 System Interconnect Switch IDT
89HPES32NT8BG2 System Interconnect Switch IDT
89HPES32H8 32-Lane 8-Port PCI Express System Interconnect Switch IDT

Other Datasheets by Renesas

Part Number Description
89HPES32NT24BG2 System Interconnect Switch
89HPES32H8 System Interconnect Switch
89HPES32H8G2 System Interconnect Switch
89HPES32T8G2 I/O Expansion Switch
89HPES34H16 PCI Express Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

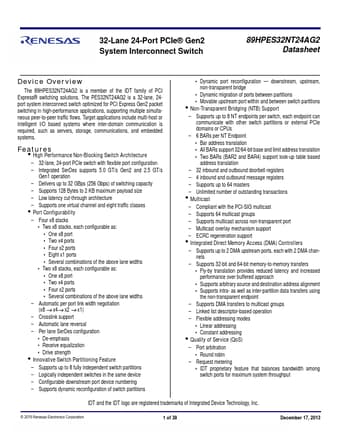

32-Lane 24-Port PCIe® Gen2 System Interconnect Switch ® 89HPES32NT24AG2 Datasheet Device Overview The 89HPES32NT24AG2 is a member of the IDT family of PCI Express® switching solutions. The PES32NT24AG2 is a 32-lane, 24port system interconnect switch optimized for PCI Express Gen2 packet switching in high-performance applications, supporting multiple simultaneous peer-to-peer traffic flows. Target applications include multi-host or intelligent I/O based systems where inter-domain communication is required, such as servers, storage, communications, and embedded systems. Features  High Performance Non-Blocking Switch Architecture – 32-lane, 24-port PCIe switch with flexible port configuration – Integrated SerDes supports 5.0 GT/s Gen2 and 2.
