BB506C Built in Biasing Circuit MOS FET IC UHF RF Amplifier

BB506C Description

BB506C Built in Biasing Circuit MOS FET IC UHF RF Amplifier REJ03G1246-0100 Rev.1.00 Jun.27, 2005 .

BB506C Features

* Built in Biasing Circuit; To reduce using parts cost & PC board space.
* High gain www. DataSheet4U. com PG = 24 dB typ. (f = 900 MHz)
* Low noise NF = 1.4 dB typ. (f = 900 MHz)
* Low output capacitance Coss = 1.1 pF typ. (f = 1 MHz)
* Provide mini mold packag

📥 Download Datasheet

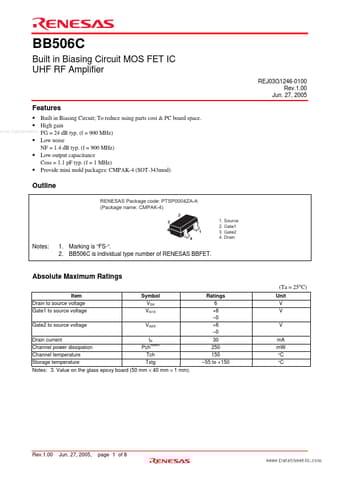

Preview of BB506C PDF
datasheet Preview Page 2 datasheet Preview Page 3
