BB502 - Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier

Features

  • Build in Biasing Circuit; To reduce using parts cost & PC board space. Low noise; NF = 1.6 dB typ. at f = 900 MHz High gain; PG = 22 dB typ. at f = 900 MHz Withstanding to ESD; Build in ESD absorbing diode. Withstand up to 200V at C=200pF, Rs=0 conditions.
  • Provide mini mold packages; CMPAK-4(SOT-343mod) Outline CMPAK-4 2 3 1 4 1. Source 2. Gate1 3. Gate2 4. Drain Note: 1. 2. Marking is “BS.
  • ”. BB502C is individual type number of HITA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BB504C Build in Biasing Circuit MOS FET IC VHF&UHF RF Amplifier Hitachi Semiconductor
BB504C Built in Biasing Circuit MOS FET IC VHF&UHF RF Amplifier Renesas Technology
BB505B Silicon Variable Capacitance Diodes Siemens Semiconductors
BB505C Build in Biasing Circuit MOS FET IC Renesas Technology
BB505G Silicon Variable Capacitance Diodes Siemens Semiconductors

Other Datasheets by Hitachi Semiconductor (now Renesas)

Part Number Description
BB502 Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier
BB502C Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier
BB502M Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier
BB501 Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier
BB501 Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

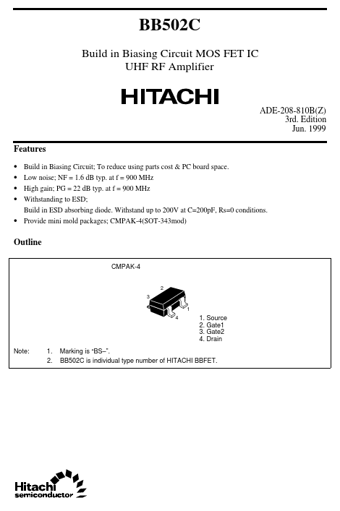

BB502C Build in Biasing Circuit MOS FET IC UHF RF Amplifier ADE-208-810B(Z) 3rd. Edition Jun. 1999 Features • • • • Build in Biasing Circuit; To reduce using parts cost & PC board space. Low noise; NF = 1.6 dB typ. at f = 900 MHz High gain; PG = 22 dB typ. at f = 900 MHz Withstanding to ESD; Build in ESD absorbing diode. Withstand up to 200V at C=200pF, Rs=0 conditions. • Provide mini mold packages; CMPAK-4(SOT-343mod) Outline CMPAK-4 2 3 1 4 1. Source 2. Gate1 3. Gate2 4. Drain Note: 1. 2. Marking is “BS–”. BB502C is individual type number of HITACHI BBFET.
