FR105, FR101 FAST RECOVERY RECTIFIER

FR105 Description

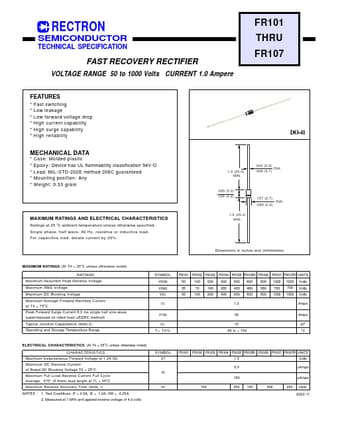

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere FR101 THRU FR107 .

FR105 Features

* Fast switching
* Low leakage
* Low forward voltage drop
* High current capability
* High surge capability
* High reliability DO-41 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR105, FR101. Please refer to the document for exact specifications by model.

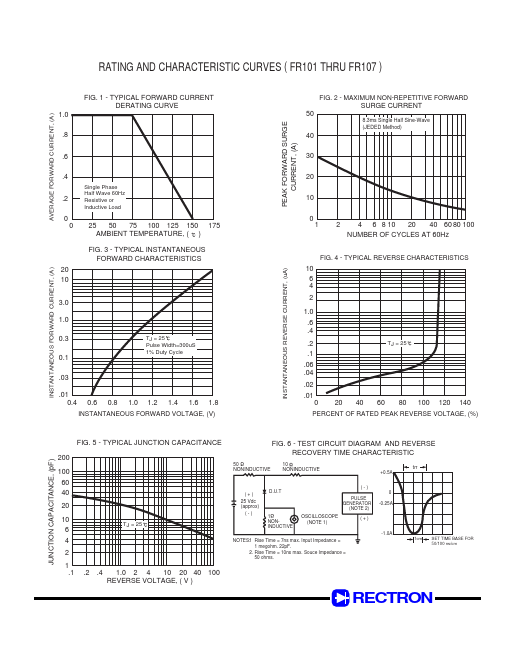

datasheet Preview Page 2

Datasheet Details

Part number
FR105, FR101
Manufacturer
Rectron
File Size
24.79 KB
Datasheet
FR101-Rectron.pdf
Description
FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FR105, FR101.
Please refer to the document for exact specifications by model.
