DB105 - SILICON BRIDGE RECTIFIER

Product Overview

Rectron

📥 Download Datasheet

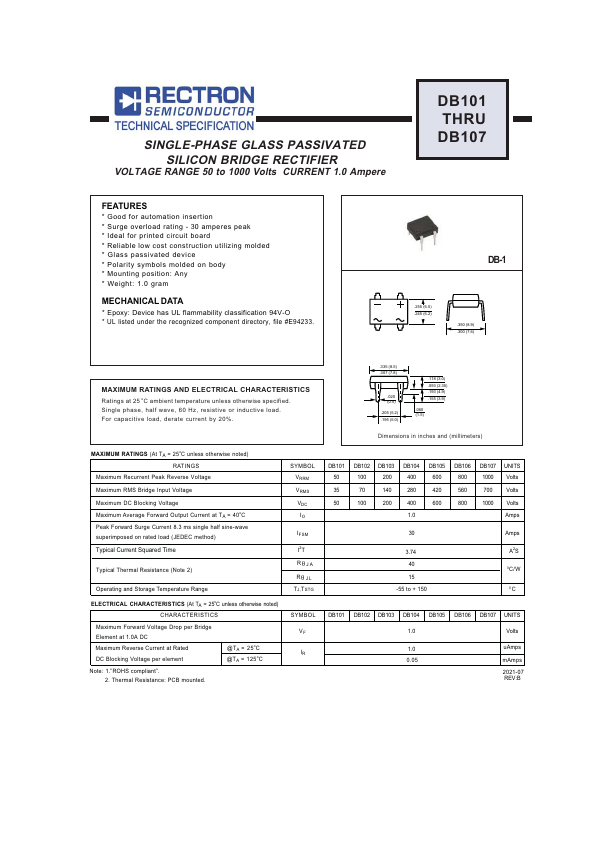

DB105 SILICON BRIDGE RECTIFIER by Rectron - Datasheet Preview — Datasheet preview – DB105

Datasheet Details

Part number	DB105
Manufacturer	Rectron
File Size	78.76 KB
Description	SILICON BRIDGE RECTIFIER
Datasheet	DB105 Datasheet
Note	This datasheet PDF includes multiple part numbers: DB105, DB101. Please refer to the document for exact specifications by model.

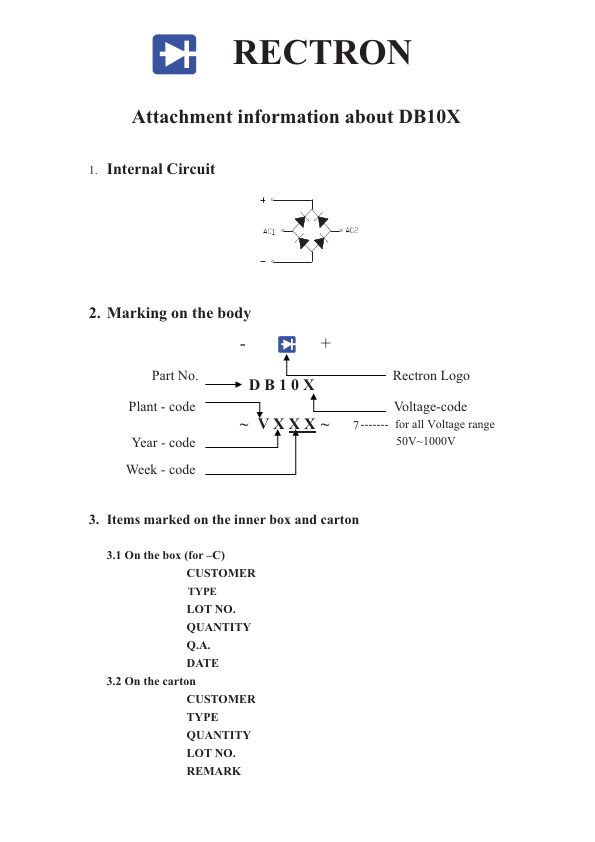

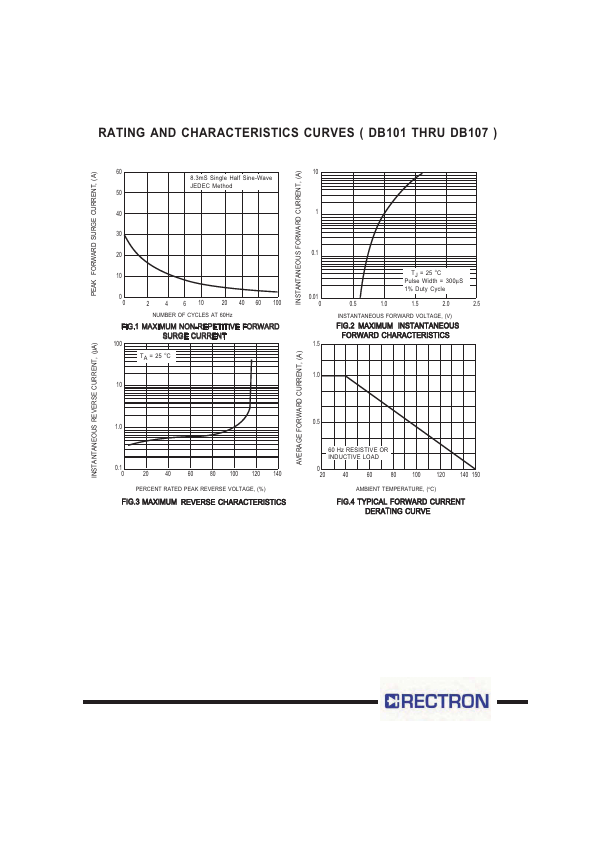

Additional preview pages of the DB105 datasheet.

Product details

Description

only.

Features

Good for automation insertion.
Surge overload rating - 30 amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded.
Glass passivated device.
Polarity symbols molded on body.
Mounting position: Any.
Weight: 1.0 gram.
