DB105L, DB101L - 1 Amp Single Phase Glass Passivated Bridge Rectifier

MCC

📥 Download Datasheet

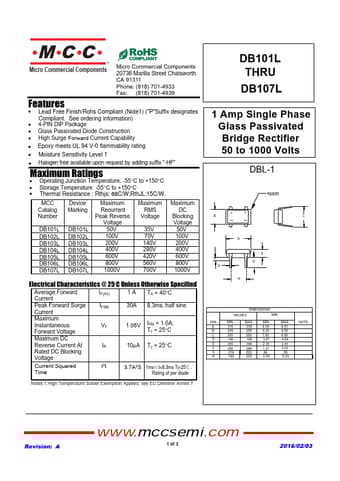

DB105L Datasheet Preview — This datasheet PDF includes multiple part numbers: DB105L, DB101L. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DB105L, DB101L
Manufacturer	MCC
File Size	481.89 KB
Description	1 Amp Single Phase Glass Passivated Bridge Rectifier
Datasheet	DB101L-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: DB105L, DB101L. Please refer to the document for exact specifications by model.

DB105L Product details

Features

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
4-PIN DIP Package.
Glass Passivated Diode Construction.
High Surge Forward Current Capability.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Halogen free available upon request by adding suffix "-HF" Maximum Ratings.
Operating Junction Temperature: -55°C to +150°C.
Storage Temperature: -5.
