DB101 - 1A Single Phase Bridge Rectifier

Datasheet Details

Part number	DB101
Manufacturer	MCC
File Size	315.57 KB
Description	1A Single Phase Bridge Rectifier
Datasheet	DB101-MCC.pdf

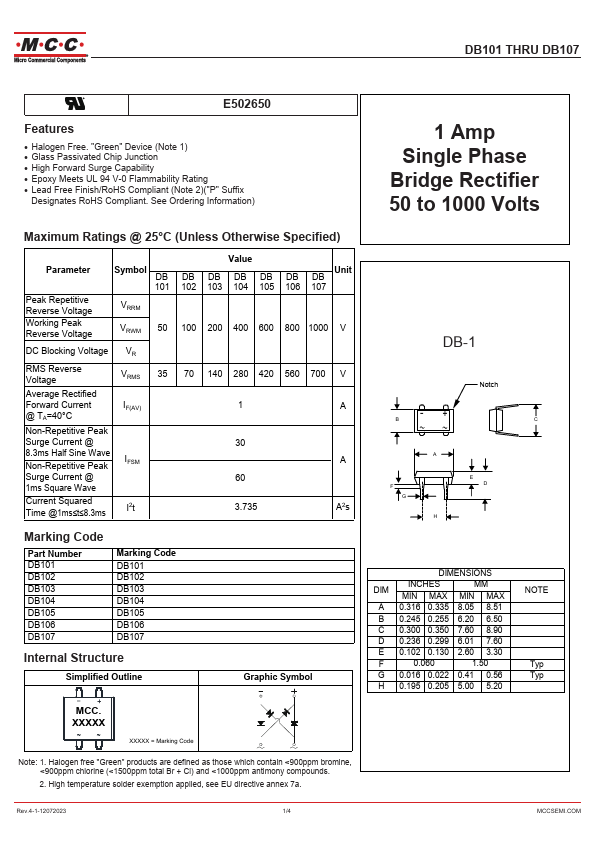

Halogen Free. "Green" Device (Note 1).
Glass Passivated Chip Junction.
High Forward Surge Capability.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) 1 Amp Single Phase Bridge Rectifier 50 to 1000 Volts Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol DB DB DB DB.
