DB101LS - SILICON BRIDGE RECTIFIER

Description

Part No.

code: (Y:Last digit of year& A:2010,B:2011……) Week code: (WW:01~52) Rectron Logo Voltage-code 1-------50V 5-------600V 2-------100V 6-------800V 3-------200V 7-----1000V 4-------400V PACKAGING OF DIODE AND BRIDGE RECTIFIERS TUBE PACK PA

Features

  • Good for automation insertion.
  • Surge overload rating - 30 amperes peak.
  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing molded.
  • Glass passivated device.
  • Polarity symbols molded on body.
  • Mounting position: Any.
  • Weight: 0.335 gram.

📥 Download Datasheet

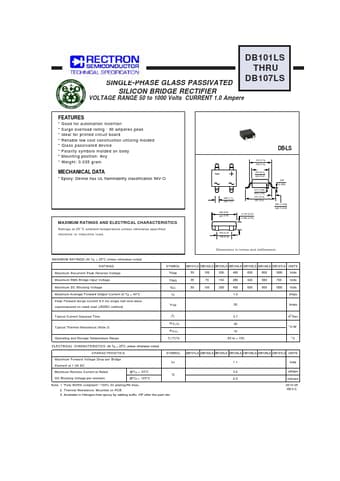

Datasheet preview – DB101LS
