WM71016, WM71004 (WM71004 - WM71016) 4/8/16Kbit Secure F-RAM Memory

WM71016 Description

www.DataSheet.co.kr Preliminary WM71004 / WM71008 / WM71016 4/8/16Kbit Secure F-RAM Memory with Gen-2 RFID Access .
The WM710xx is a RFID transponder IC with nonvolatile memory employing an advanced ferroelectric process.

WM71016 Features

* 4/8/16 Kbit Ferroelectric Nonvolatile RAM
* Organized as 256/512/1024 x 16 bits
* Very High Read/Write Endurance (> 1014)
* 20-Year Data Retention
* Gamma Stability Demonstrated to > 30 kGy
* Symmetric Read/Write Operation
* Advanced High-Reliability Ferroelectric Process Int

WM71016 Applications

* of an RFID solution. When combined with an appropriate antenna design, WM710xx will power up with energy harvested directly from the RF field. Following an internally generated reset state, the IC configures itself according to preprogrammed configuration settings that were stored in F-RAM non-volat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: WM71016, WM71004. Please refer to the document for exact specifications by model.

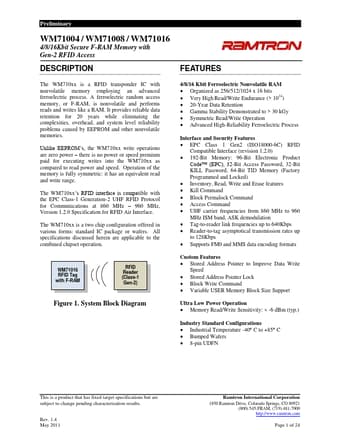

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WM71016, WM71004
Manufacturer
Ramtron
File Size
463.18 KB
Datasheet
WM71004_Ramtron.pdf
Description
(WM71004 - WM71016) 4/8/16Kbit Secure F-RAM Memory
Note
This datasheet PDF includes multiple part numbers: WM71016, WM71004.
Please refer to the document for exact specifications by model.
