WM7216E Low Power Top Port Digital Silicon Microphone

WM7216E Description

WM7216E Low Power Top Port Digital Silicon Microphone .
The WM7216 is a low-profile digital silicon microphone, optimised for use with low-power ‘Always-on’ voice control applications, such as Cirrus Logic®.

WM7216E Features

* High SNR (63dB)
* Low variation in sensitivity (±1dB tolerance)
* Low current consumption - 10μA (Sleep) - 290μA (Voice mode) - 980μA (Hi-Fi Record mode)
* PDM digital audio output
* Stereo/array operation
* Proprietary ADC technology - Reduced clock-jitter sensitivity - Lo

WM7216E Applications

* such as Cirrus Logic® SoundClear™ software. The WM7216 supports two operational modes, selected according to the applied clock frequency. ‘Voice’ mode provides low current consumption, and sufficient SNR performance for speech recognition algorithms. ‘Hi-Fi Record’ mode offers wide dynamic range, a

📥 Download Datasheet

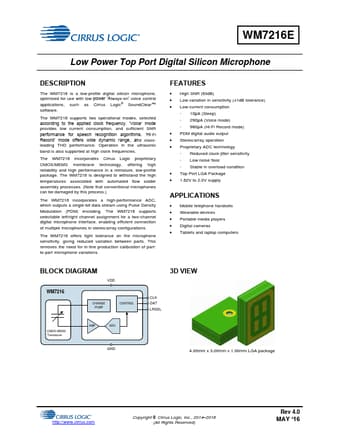

Preview of WM7216E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WM7216E
Manufacturer
Cirrus Logic
File Size
688.05 KB
Datasheet
WM7216E-CirrusLogic.pdf
Description
Low Power Top Port Digital Silicon Microphone
