RS4GT08 - Quadruple 2-Input Positive-AND Gate

RS4GT08 Description

RS4GT08 RS4GT08 Quadruple 2-Input Positive-AND Gate 1 .
The RS4GT08 quadruple 2-input positive-AND gate is designed for 2.

RS4GT08 Features

* Operating Voltage Range: 2.0V to 5.5V
* Low Power Consumption: 1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs Are TTL-Voltage Compatible
* High Output Drive: ±32mA at VCC=5.0V
* Micro SIZE PACKAGES: SOIC-14(SOP14), TSSOP14 2 APPLIC

RS4GT08 Applications

* Active Noise Elimination
* Bar Code Scanner
* Blood Pressure Monitor
* CPAP Machine
* Fingerprint identification

📥 Download Datasheet

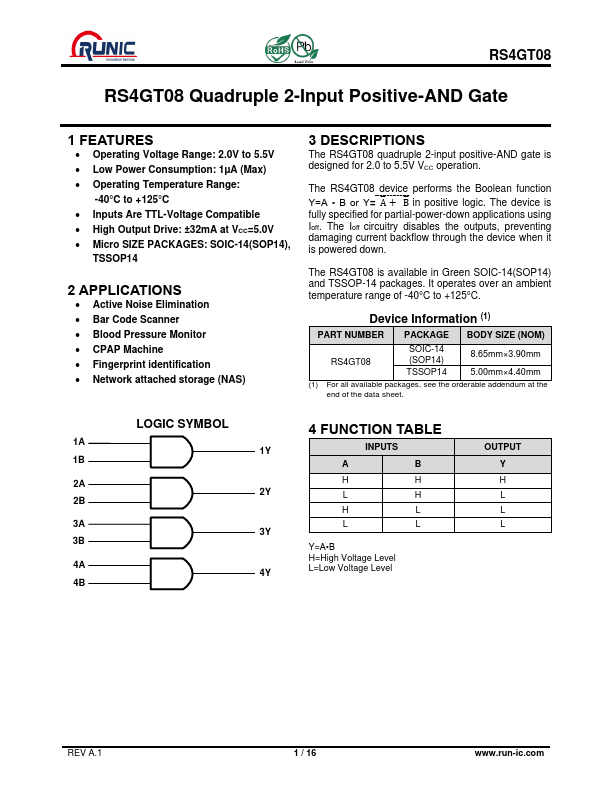

Preview of RS4GT08 PDF

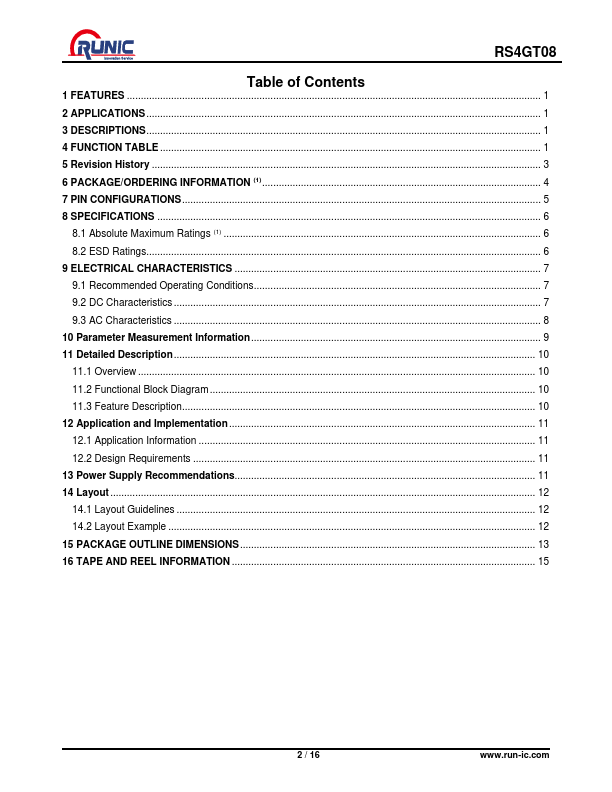

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS4GT08
Manufacturer
RUNIC
File Size
384.64 KB
Datasheet
RS4GT08-RUNIC.pdf
Description
Quadruple 2-Input Positive-AND Gate
