RS421 - Precision Programmable Reference

RS421 Description

RS421/ RS422 RS421/ RS422 Precision Programmable Reference .
The RS421 and RS422 device are three-terminal adjustable shunt regulators, with a guaranteed thermal stability over applicable temperature ranges.

RS421 Features

* Reference Voltage Tolerance at 25°C 0.5%
* Programmable output voltage to 36V
* Low dynamic output impedance 0.1Ω
* Sink current capability of 0.5mA to 100mA
* Equivalent full-range temperature coefficient of 50ppm/°C typical
* Temperature compensate

RS421 Applications

* Adjustable voltage and current referencing
* Power supply
* Zener replacement
* Voltage monitoring
* Comparator with integrated reference

📥 Download Datasheet

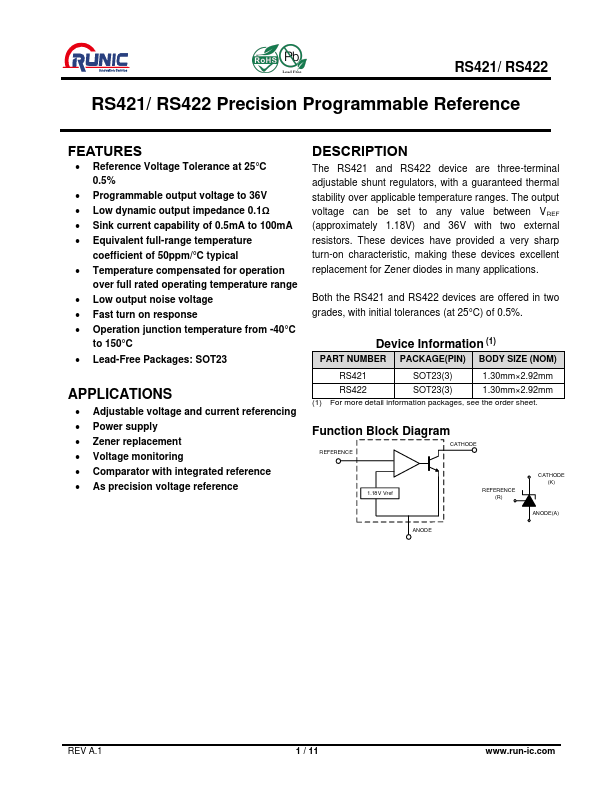

Preview of RS421 PDF

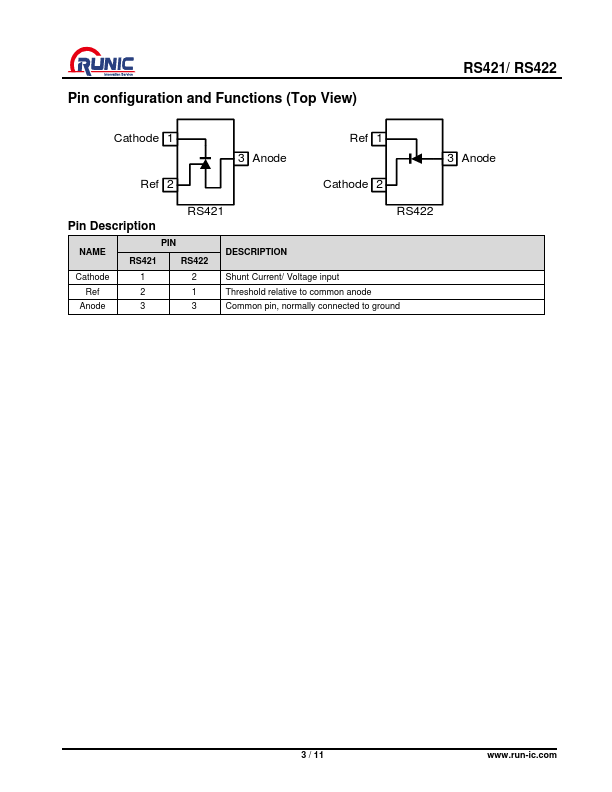

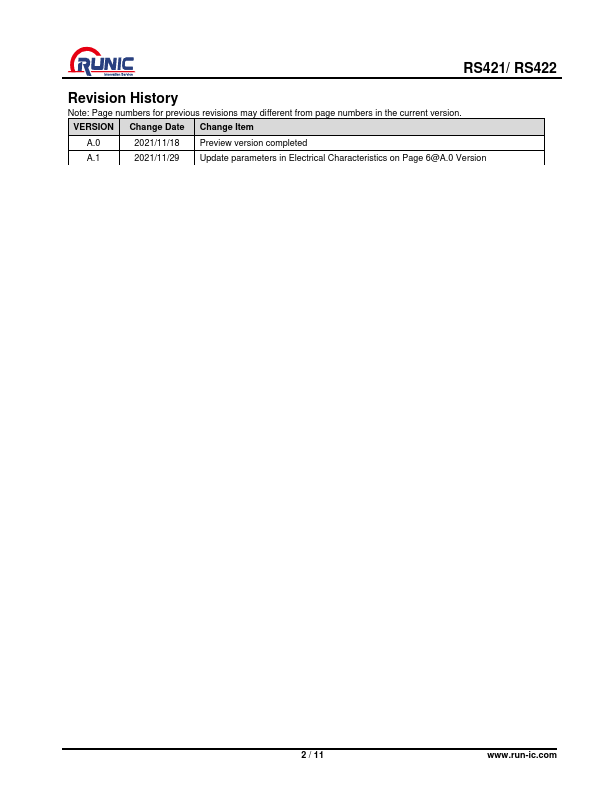

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS421
Manufacturer
RUNIC
File Size
305.12 KB
Datasheet
RS421-RUNIC.pdf
Description
Precision Programmable Reference
