RS4G32 - Quadruple 2-Input Positive-OR Gate

RS4G32 Description

RS4G32 RS4G32 Quadruple 2-Input Positive-OR Gate .
The RS4G32 Quadruple 2-input positive-OR gate is designed for 1.

RS4G32 Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:1µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V

RS4G32 Applications

* using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. APPLICATIONS
* AV Receiver
* Blu-ray Player and Home Theater
* Digital Picture Frame (DPF)
* High-Speed Data Acquisition and Generati

📥 Download Datasheet

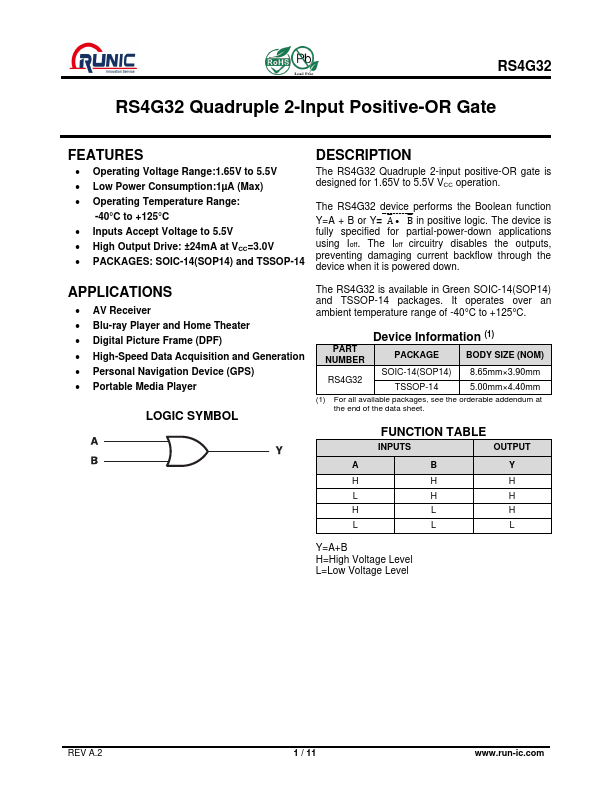

Preview of RS4G32 PDF

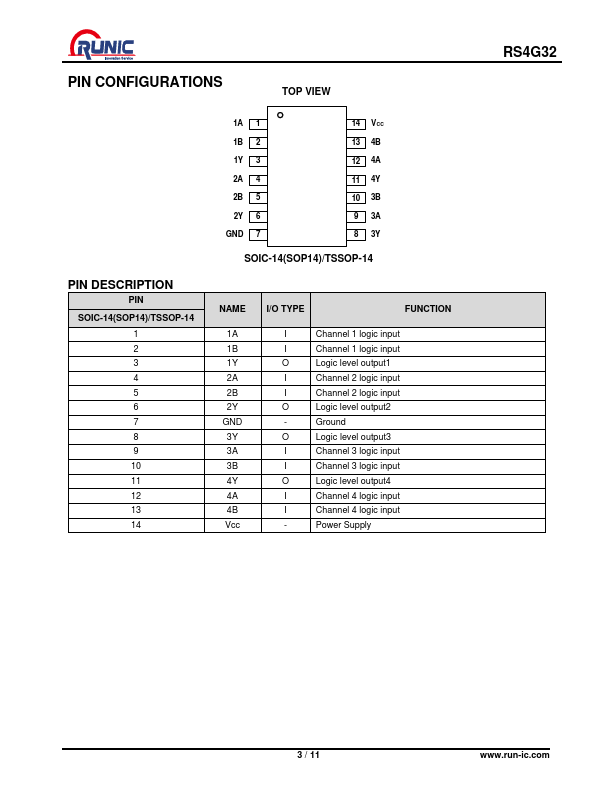

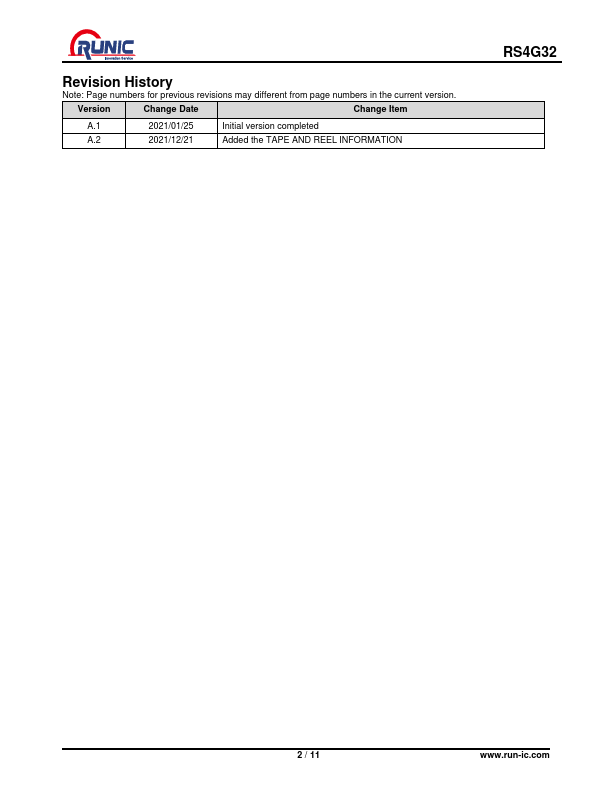

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS4G32
Manufacturer
RUNIC
File Size
367.41 KB
Datasheet
RS4G32-RUNIC.pdf
Description
Quadruple 2-Input Positive-OR Gate
