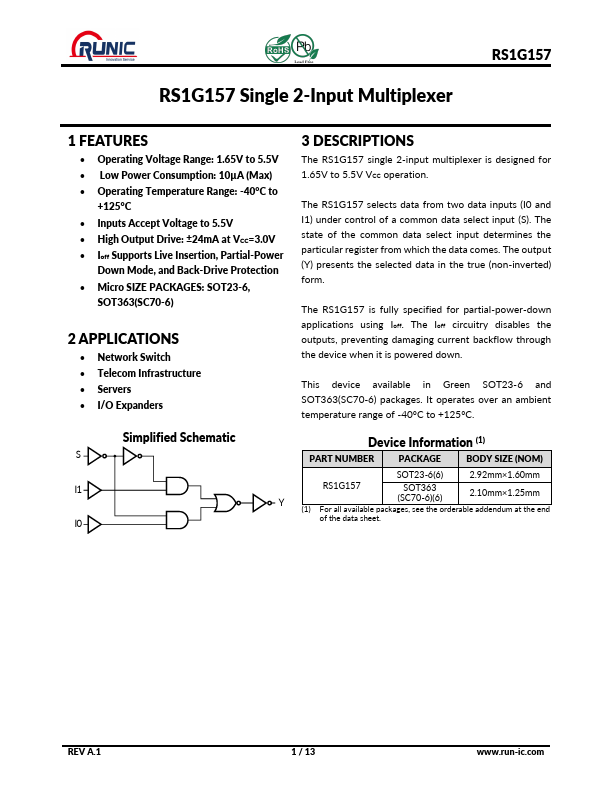

RS1G157 - Single 2-Input Multiplexer

The RS1G157 single 2-input multiplexer is designed for 1.65V to 5.5V VCC operation. The RS1G157 selects data from two data inputs (I0 and I1) under control of a common data select input (S). The state of the common data select input determines the particular register from which the data comes. The.

RS1G157 Features

* Operating Voltage Range: 1.65V to 5.5V

* Low Power Consumption: 10µ A (Max)

* Operating Temperature Range: -40°C to +125°C

* Inputs Accept Voltage to 5.5V

* High Output Drive: ±24mA at VCC=3.0V

* Ioff Supports Live Insertion, Partial-Power Down Mode,
