RS1G, RS1A Fast Recovery Rectifier

RS1G Description

Fast Recovery Rectifier Production specification RS1A *RS1G .

RS1G Applications

* Ideal for automated placement
* Low forward voltage drop
* High surge current capability
* RoHS Compliant Mechanical Data
* Case: SMA molded plastic
* Molding compound, UL flammability classification rating 94V-0
* Terminals: Solder plated, solderable per MIL- STD-202,M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS1G, RS1A. Please refer to the document for exact specifications by model.

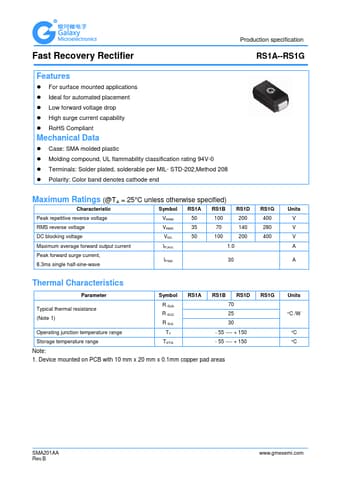

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS1G, RS1A
Manufacturer
GME
File Size
477.66 KB
Datasheet
RS1A-GME.pdf
Description
Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: RS1G, RS1A.
Please refer to the document for exact specifications by model.
