RS1G126 - Single Bus Buffer Gate

The RS1G126 by RUNIC is a Single Bus Buffer Gate. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the RS1G126 Single Bus Buffer Gate datasheet (RUNIC).

Datasheet Details

Part number RS1G126
Manufacturer RUNIC
File Size 331.42 KB
Description Single Bus Buffer Gate
Datasheet download datasheet RS1G126-RUNIC.pdf

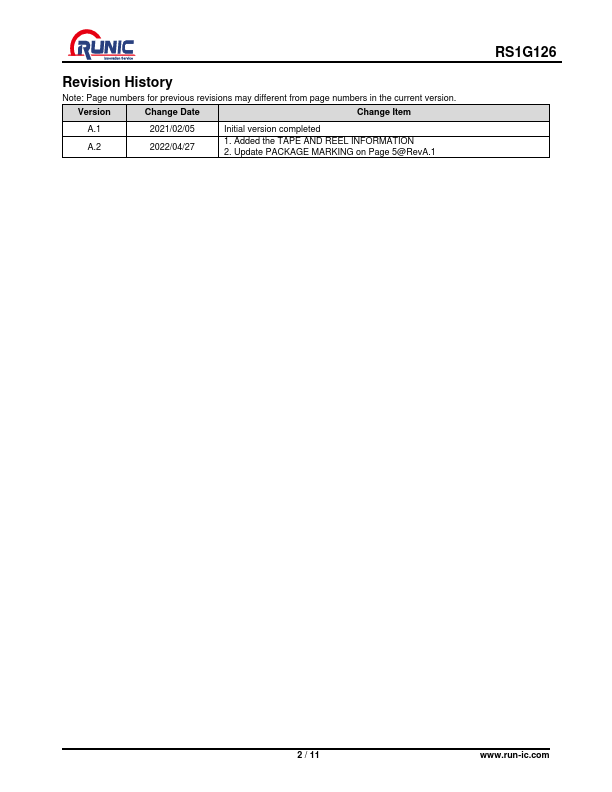

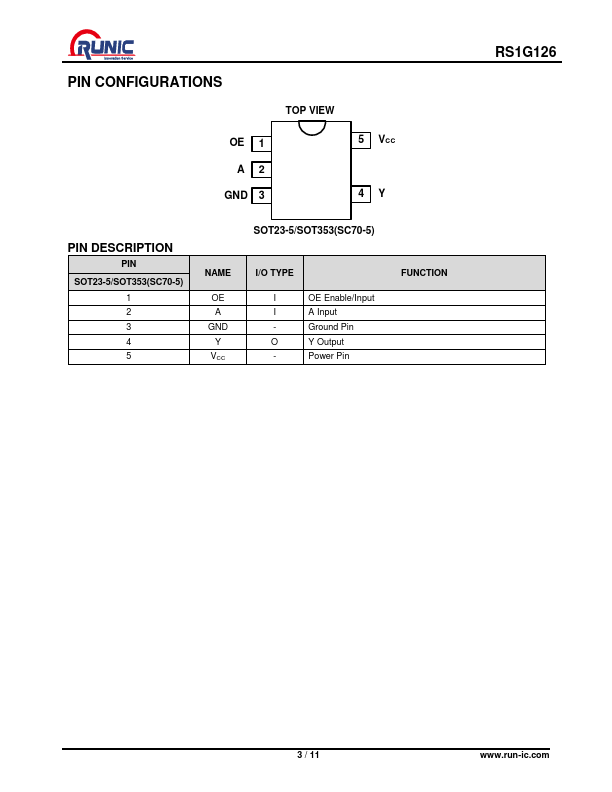

Additional preview pages of the RS1G126 datasheet.

RS1G126 Product details

Description

Operating Voltage Range:1.65V to 5.5V Low Power Consumption:1µA (Max) Operating Temperature Range: -40°C to +125°C Inputs Accept Voltage to 5.5V ±24mA Output Drive at VCC=3.0V Latch-up Performance Exceeds 100mA Micro SIZE PACKAGES: SOT23-5, SC70-5 APPLICATIONS AV Receiver Cable Modem Termination Systems Digital Picture Frame (DPF) High-Speed Data Acquisition and Generation Mot
