DTA113ZCA - PNP Digital Transistor

Product Overview

ROHM

📥 Download Datasheet

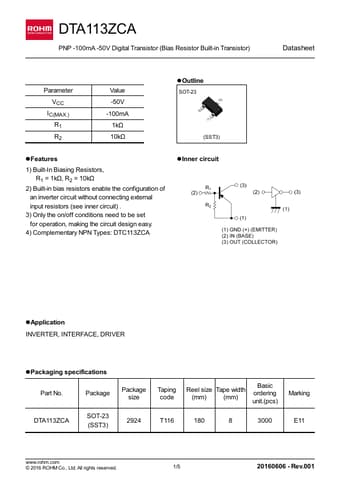

DTA113ZCA PNP Digital Transistor by ROHM - Datasheet Preview — Datasheet preview – DTA113ZCA

Datasheet Details

Part number	DTA113ZCA
Manufacturer	ROHM
File Size	1.01 MB
Description	PNP Digital Transistor
Datasheet	DTA113ZCA Datasheet
Additional preview pages of the DTA113ZCA datasheet.

Product details

Features

1) Built-In Biasing Resistors, 　　 R1 = 1kΩ, R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC113ZCA lOutline SOT-23 　　　　　　 (SST3) 　　　　　　　　　　　　 lInner circuit Datasheet l.
