DTA113ZKA - PNP Digital transistors

Rohm

📥 Download Datasheet

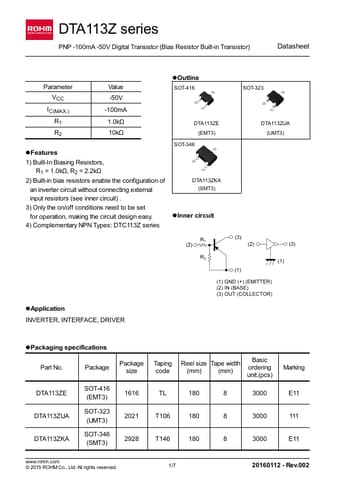

DTA113ZKA Datasheet Preview — Preview of DTA113ZKA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTA113ZKA
Manufacturer	ROHM
File Size	1.38 MB
Description	PNP Digital transistors
Datasheet	DTA113ZKA_Rohm.pdf

DTA113ZKA Product details

Features

1) Built-In Biasing Resistors, 　　 R1 = 1.0kΩ, R2 = 2.2kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC113Z series lOutline SOT-416 SOT-323 　　 DTA113ZE DTA113ZUA (EMT3) (UMT3) SOT-346 　　　　　　　　　　　　　　　 DTA113ZKA (SMT3) 　　　　　　　　　　　　　 lInner circuit lApplic.
