DTA113ZM - PNP DIGITAL TRANSISTOR

JCET

📥 Download Datasheet

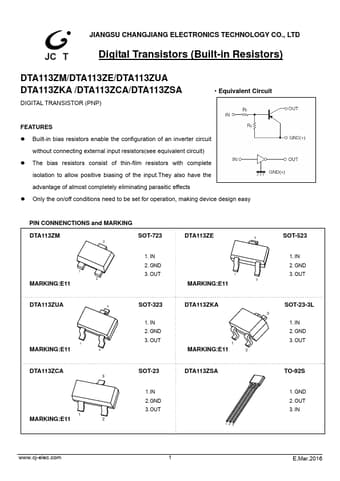

DTA113ZM Datasheet Preview — Preview of DTA113ZM PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTA113ZM
Manufacturer	JCET
File Size	3.77 MB
Description	PNP DIGITAL TRANSISTOR
Datasheet	DTA113ZM-JCET.pdf

DTA113ZM Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy PIN.
