RFDA2025 - DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER

RFDA2025 Description

RFDA2025Digital Controlled Variable Gain Amplifier RFDA2025 DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER Package: MCM, 32-Pin, 5.2mmx5.2mm GND GND G.
RFMD’s RFDA2025 is a digital controlled variable gain amplifier featuring high linearity over the entire gain control range.

RFDA2025 Features

* 500MHz to 2500MHz Operation
* 6-Bit Digital Step Attenuator
* Serial Control Interface
* 31.5dB Attenuation Range (0.5dB Step)
* High OIP3/P1dB=+43/25dBm
* Gain=-20dB to +11.5dB at 2017 MHz
* Single +5V Supply
* Robust 1000V HBM ESD
* Footprint Compatible with 3

RFDA2025 Applications

* Cellular, PCS, 3G Infrastructure
* WiBro, WiMax, LTE
* High Linearity Power Control AMPIN 1 32 GND 2 GND 3 ATTOUT 4 NC 5 NC 6 NC 7 NC 8 9 AMP 31 30 29 DSA 10 11 12 28 27 26 6-bit SPI 13 14 15 25 24 NC 23 NC 22 NC 21 NC 20 NC 19 NC 18 NC 17 Vdd 16 E-pad GND NC NC G

📥 Download Datasheet

Preview of RFDA2025 PDF

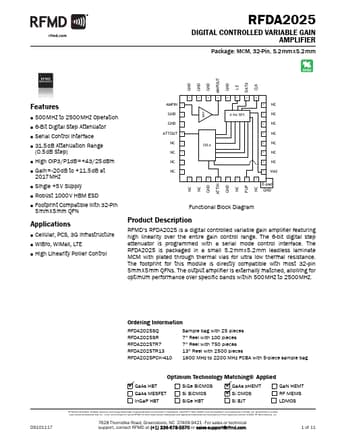

datasheet Preview Page 2 datasheet Preview Page 3
