RFDA2015 - DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER

RFDA2015 Description

RFDA2015Digital Controlled Variable Gain Amplifier RFDA2015 DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER Package: MCM, 32-Pin, 5.2mmx5.2mm GND GND G.
RFMD’s RFDA2015 is a digital controlled variable gain amplifier featuring high linearity over the entire gain control range.

RFDA2015 Features

* 500MHz to 2500MHz Operation
* 6-Bit Digital Step Attenuator
* Parallel Control Interface
* 31.5dB Attenuation Range (0.5dB Step)
* High OIP3/P1dB=+43/25dBm
* Gain=-20dB to +11.5dB at 2017 MHz
* Single +5V Supply
* Footprint Compatible with 32-Pin 5mmx5mm QFN Applica

RFDA2015 Applications

* Cellular, PCS, 3G Infrastructure
* WiBro, WiMax, LTE
* High Linearity Power Control 32 31 30 29 28 27 26 25 AMPIN 1 AMP 24 NC GND 2 23 D0 GND 3 22 D1 ATTOUT 4 NC 5 DSA 21 D2 20 D3 NC 6 19 D4 NC 7 18 D5 NC 8 NC NC GND ATTIN GND NC NC NC 17 VDD 9 10 11 12 13 14 15 16 E-

📥 Download Datasheet

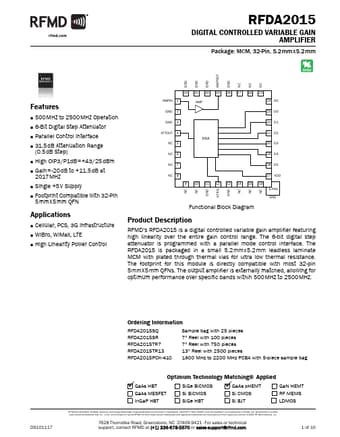

Preview of RFDA2015 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFDA2015
Manufacturer
RF Micro Devices
File Size
652.17 KB
Datasheet
RFDA2015-RFMicroDevices.pdf
Description
DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER
