RFDA2077 Datasheet PDF (DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER)

RFDA2077 - DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER

Description

RFMD’s RFDA2077 is a dual channel digital controlled variable gain amplifier featuring high linearity over the entire gain control range with noise figure less than 6.5dB in its maximum gain state.

Features

Dual Channel VGA.
Frequency Range 1700MHz to 2400 MHz.
Full Internal Matching and No External Bias Inductors.
Two 6-Bit Digital Step Attenuators.
12-Bit SPI Serial Control Programming.
High Channel Isolation = 50dBc.
Max Gain=12.2dB@1800MHz.
Gain Control Range=31.5dB (0.5dB step size).
High OIP3/P1dB=+41/24.5dBm @ 1800 MHz.
Single +5V Supply.
Small 32-Pin, 7.0mmx7.0mm, MCM.
Power Up Programming.

Datasheet Details

Part number	RFDA2077
Manufacturer	RF Micro Devices
File Size	1.03 MB
Description	DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER
Datasheet	RFDA2077 Datasheet

📁 Similar Datasheet

RFD10P03L - P-Channel Power MOSFET (Harris)

RFD10P03L - 10A/ 30V/ 0.200 Ohm/ Logic Level/ P-Channel Power MOSFET (Intersil Corporation)

RFD10P03LSM - P-Channel Power MOSFET (Harris)

RFD10P03LSM - 10A/ 30V/ 0.200 Ohm/ Logic Level/ P-Channel Power MOSFET (Intersil Corporation)

RFD12N06RLE - 17A/ 60V/ 0.071 Ohm/ N-Channel/ Logic Level UltraFET Power MOSFET (Fairchild Semiconductor)

RFD12N06RLE - 12A/ 60V/ 0.135 Ohm/ N-Channel/ Logic Level/ Power MOSFETs (Intersil Corporation)

RFD12N06RLESM - 17A/ 60V/ 0.071 Ohm/ N-Channel/ Logic Level UltraFET Power MOSFET (Fairchild Semiconductor)

RFD12N06RLESM - 12A/ 60V/ 0.135 Ohm/ N-Channel/ Logic Level/ Power MOSFETs (Intersil Corporation)

RFD14N05 - 14A/ 50V/ 0.100 Ohm/ N-Channel Power MOSFETs (Fairchild Semiconductor)

RFD14N05 - Avalanche Rated N-Channel Enhancement-Mode Power MOSFET (HARRIS)

Full PDF Text Transcription

Click to expand full text

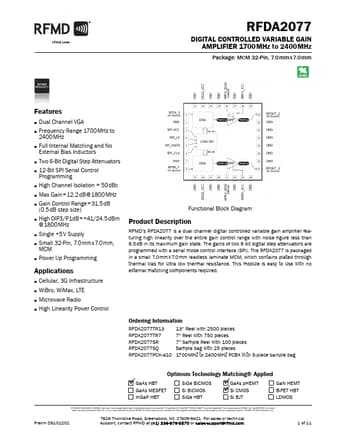

RFDA2077Digital Controlled Variable Gain Amplifier 1700 MHz to 2400 MHz RFDA2077 DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER 1700MHz to 2400MHz Package: MCM 32-Pin, 7.0mmx7.0mm Features  Dual Channel VGA  Frequency Range 1700MHz to 2400 MHz  Full Internal Matching and No External Bias Inductors  Two 6-Bit Digital Step Attenuators  12-Bit SPI Serial Control Programming  High Channel Isolation = 50dBc  Max Gain=12.2dB@1800MHz  Gain Control Range=31.5dB (0.5dB step size)  High OIP3/P1dB=+41/24.5dBm @ 1800 MHz  Single +5V Supply  Small 32-Pin, 7.0mmx7.
