QPA3069 - 100W GaN Power Amplifier

Qorvo

📥 Download Datasheet

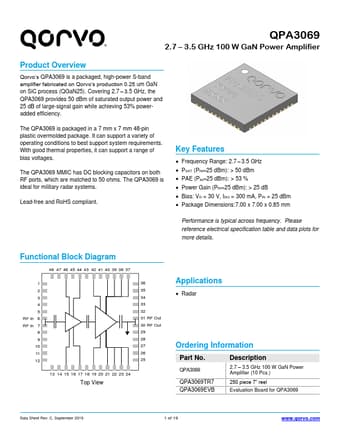

QPA3069 Datasheet Preview — Preview of QPA3069 PDF

Datasheet Details

Part number	QPA3069
Manufacturer	Qorvo
File Size	768.95 KB
Description	100W GaN Power Amplifier
Datasheet	QPA3069-Qorvo.pdf

QPA3069 Product details

Description

2.7 3.5 GHz 100 W GaN Power Amplifier (10 Pcs.) 250 piece 7” reel Evaluation Board for QPA3069 Data Sheet Rev.C, September 2019 1 of 19 www.qorvo.com ® Absolute Maximum Ratings Parameter Drain Voltage (VD) Value / Rang 40eV Gate Voltage Range (VG) 8 to +1 V Drain Current (ID) 13.6 A Gate Current (IG) See plot on page 12 Power Dissipation (PDISS), 85 °C 117 W Input Power (PIN), Pulsed, 50 Ω, VD=28 V, IDQ=300 mA, 85 °C 31 dBm Input Power (PIN), Pulsed, 3:1 VSW

Features

Frequency Range: 2.7 .
3.5 GHz.
PSAT (PIN=25 dBm): > 50 dBm.
PAE (PIN=25 dBm): > 53 %.
Power Gain (PIN=25 dBm): > 25 dB.
Bias: VD = 30 V, IDQ = 300 mA, PIN = 25 dBm.
Package Dimensions:7.00 x 7.00 x 0.85 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details. Functional Block Diagram 48 47 46 45 44 43 42 41 40 39 38 37 1 2 3 4 5 RF In 6 RF In 7 8 9 10 11 12 36 3.
