QPA2226D - 20 Watt GaN Power Amplifier

Datasheet Summary

Description

QPA2226D 34  

Data Sheet Rev.

© 2020 Qorvo US, Inc.

All rights reserved.

 36 GHz 20 Watt G

Features

  • Frequency Range: 34  .
  • 36 GHz.
  • PSAT (PIN = 28 dBm): 43 dBm.
  • PAE (PIN = 28 dBm): 12 %.
  • Power Gain (PIN = 28 dBm): 15 dB.
  • Small Signal Gain: > 7 dB.
  • Bias: pulsed, VD = +28 V, IDQ = 100 mA, VG = -2.5 V typ.
  • Die Dimensions: 3.29 x 5.09 x 0.05 mm Functional Block Diagram Performance is typical across frequency. Please reference electrical specification table and data plots for more details.

📥 Download Datasheet

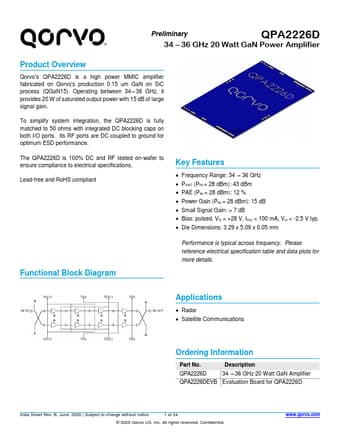

Datasheet preview – QPA2226D

Datasheet Details

Part number QPA2226D
Manufacturer Qorvo
File Size 1.24 MB
Description 20 Watt GaN Power Amplifier
Datasheet download datasheet QPA2226D Datasheet
Additional preview pages of the QPA2226D datasheet.

📁 Similar Datasheet

  • QPA2237 - 10W GaN Power Amplifier (TriQuint Semiconductor)
  • QPA2626 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628D - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA1013D - 10W GaN Power Amplifier (TriQuint)
  • QPA3230 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA3240 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA4263A - DC to 3500MHz CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4363A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4463A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
Other Datasheets by Qorvo

Full PDF Text Transcription

Click to expand full text
Preliminary QPA2226D ® 34 – 36 GHz 20 Watt GaN Power Amplifier Product Overview Qorvo's QPA2226D is a high power MMIC amplifier fabricated on Qorvo's production 0.15 um GaN on SiC process (QGaN15). Operating between 34 – 36 GHz, it provides 20 W of saturated output power with 15 dB of large signal gain. To simplify system integration, the QPA2226D is fully matched to 50 ohms with integrated DC blocking caps on both I/O ports. Its RF ports are DC coupled to ground for optimum ESD performance. The QPA2226D is 100% DC and RF tested on-wafer to ensure compliance to electrical specifications.
