AND233CRP - Ultra Bright LED Lamps

Name: AND233CRP
SKU: AND233CRP-689982

Purdy Electronics

The AND233CRP by Purdy Electronics is a Ultra Bright LED Lamps. Below is the official datasheet preview.

Datasheet Details

Part number	AND233CRP
Manufacturer	Purdy Electronics
File Size	43.42 KB
Description	Ultra Bright LED Lamps
Datasheet	AND233CRP_PurdyElectronics.pdf

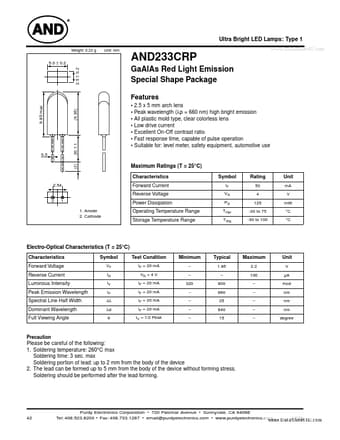

Additional preview pages of the AND233CRP datasheet.

2.5 x 5 mm arch lens.
Peak wavelength (λp = 660 nm) high bright emission.
All plastic mold type, clear colorless lens.
Low drive current.
Excellent On-Off contrast ratio.
Fast response time, capable of pulse operation.
Suitable for: level meter, safety equipment, automotive use 9.85 max 0.5 (2) 20 ± 1 (9.35) Maximum Ratings (T = 25°C) Characteristics Symbol IF VR PD TOpr TStg Rating 50 4 125 -20 to 75 -30 to 100 Unit mA V mW.
