AND185HOP - InGaAlP High Brightness Orange Light

Features

  • Peak wavelength (λp = 620 nm) high bright emission.
  • All plastic mold type, clear colorless lens.
  • Low drive current: 1 to 20 mA DC.
  • Excellent On-Off contrast ratio.
  • Fast response time, capable of pulse operation.
  • High power luminous intensity.
  • Suitable for Outdoor Message Signboards, Automotive Use.
  • RoHS Compliant Maximum Ratings (Ta = 25°C) Characteristics Symbol IF VR PD TOpr TStg 1.0±0.2 0.5 1.0 MIN. 25.4 MIN. Rating.

📥 Download Datasheet

Datasheet Details

Part number AND185HOP
Manufacturer Purdy Electronics Corporation
File Size 109.06 KB
Description InGaAlP High Brightness Orange Light
Datasheet download datasheet AND185HOP Datasheet

📁 Similar Datasheet

  • AND185HAP - InGaAlP High Brightness Amber Light Emission T-1 3/4 Package (AND)
  • AND180CRP - GaAlAs Red Light Emission T-1 3/4 Package (AND)
  • AND180CRP-B - GaAlAs Red Light Emission (Purdy Electronics)
  • AND186CRP - Ultra Bright LED Lamps (Purdy Electronics)
  • AND113G - Standard LED (Purdy Electronics)
  • AND113GP - Standard LED (Purdy Electronics)
  • AND114S - Standard LED (Purdy Electronics)
  • AND114Y - Standard LED (Purdy Electronics)
  • AND114YP - Standard LED (Purdy Electronics)
  • AND124G - Standard LED T-1 Package (AND)
Other Datasheets by Purdy Electronics Corporation

Full PDF Text Transcription

Click to expand full text

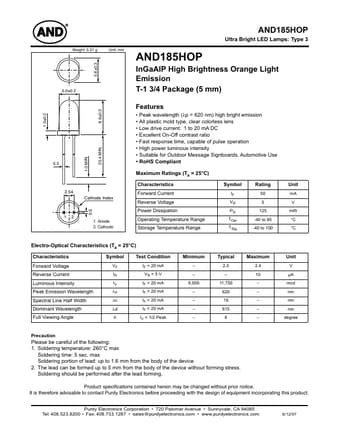

www.DataSheet.co.kr AND185HOP Ultra Bright LED Lamps: Type 3 Weight: 0.31 g Unit: mm 5.6±0.3 AND185HOP InGaAlP High Brightness Orange Light Emission T-1 3/4 Package (5 mm) 8.6±0.3 5.0±0.2 Features • Peak wavelength (λp = 620 nm) high bright emission • All plastic mold type, clear colorless lens • Low drive current: 1 to 20 mA DC • Excellent On-Off contrast ratio • Fast response time, capable of pulse operation • High power luminous intensity • Suitable for Outdoor Message Signboards, Automotive Use • RoHS Compliant Maximum Ratings (Ta = 25°C) Characteristics Symbol IF VR PD TOpr TStg 1.0±0.2 0.5 1.0 MIN. 25.4 MIN. Rating 50 5 125 -40 to 85 -40 to 100 Unit mA V mW °C °C 2.54 Cathode Index 0.5 Forward Current Reverse Voltage Power Dissipation 1 2 1. Anode 2.
