AND-C-106 - Dipole Antenna for PCN

Description

The AND-C-106 collinear dipole is vertically polarized and omnidirectional in azimuth.

The unit is flexible to permit bending without damage.

The compact design is optimized for high efficiency and easily adapted to custom applications.

Features

  • x x x x x x Compact Size High Efficiency Low VSWR Ground Plane Independent Rugged/Durable Flexible V3.00.

📥 Download Datasheet

📁 Similar Datasheet

  • AND-8010 - LED Displays (Purdy Electronics)
  • AND113G - Standard LED (Purdy Electronics)
  • AND113GP - Standard LED (Purdy Electronics)
  • AND114S - Standard LED (Purdy Electronics)
  • AND114Y - Standard LED (Purdy Electronics)
  • AND114YP - Standard LED (Purdy Electronics)
  • AND124G - Standard LED T-1 Package (AND)
  • AND180CRP - GaAlAs Red Light Emission T-1 3/4 Package (AND)
  • AND180CRP-B - GaAlAs Red Light Emission (Purdy Electronics)
  • AND185HAP - InGaAlP High Brightness Amber Light Emission T-1 3/4 Package (AND)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

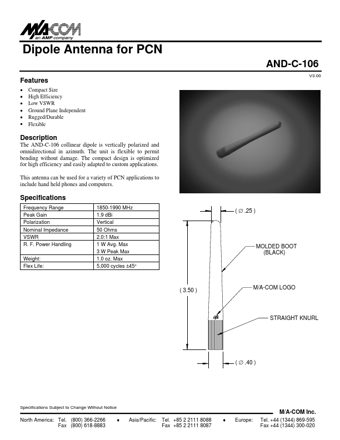

Dipole Antenna for PCN AND-C-106 Features x x x x x x Compact Size High Efficiency Low VSWR Ground Plane Independent Rugged/Durable Flexible V3.00 Description The AND-C-106 collinear dipole is vertically polarized and omnidirectional in azimuth. The unit is flexible to permit bending without damage. The compact design is optimized for high efficiency and easily adapted to custom applications. This antenna can be used for a variety of PCN applications to include hand held phones and computers. Specifications Frequency Range Peak Gain Polarization Nominal Impedance VSWR R. F. Power Handling Weight: Flex Life: 1850-1990 MHz 1.9 dBi Vertical 50 Ohms 2.0:1 Max 1 W Avg. Max 3 W Peak Max 1.0 oz. Max 5,000 cycles ±45° ( ∅ .25 ) MOLDED BOOT (BLACK) ( 3.50 ) M/A-COM LOGO STRAIGHT KNURL ( ∅ .
Published: |
