PAM02SD2308C - (PAM02SD2308C / PAM02SD2312C) ULTRA LOW CAPACITANCE TVS ARRAY

Protek Devices

The PAM02SD2308C by Protek Devices is a (PAM02SD2308C / PAM02SD2312C) ULTRA LOW CAPACITANCE TVS ARRAY. Below is the official datasheet preview.

📥 Download Datasheet

PAM02SD2308C (PAM02SD2308C / PAM02SD2312C) ULTRA LOW CAPACITANCE TVS ARRAY by Protek Devices - Datasheet Preview — Official preview page of the **PAM02SD2308C** (PAM02SD2308C / PAM02SD2312C) ULTRA LOW CAPACITANCE TVS ARRAY datasheet (Protek Devices).

Datasheet Details

Part number	PAM02SD2308C
Manufacturer	Protek Devices
File Size	581.08 KB
Description	(PAM02SD2308C / PAM02SD2312C) ULTRA LOW CAPACITANCE TVS ARRAY
Datasheet	PAM02SD2308C_ProtekDevices.pdf

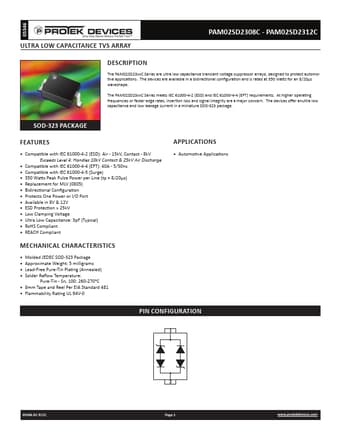

Additional preview pages of the PAM02SD2308C datasheet.

PAM02SD2308C Product details

Description

The PAM02SD23xxC Series are ultra low capacitance transient voltage suppressor arrayd, designed to protect automotive applications.

Features

Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge.
Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns.
Compatible with IEC 61000-4-5 (Surge).
350 Watts Peak Pulse Power per Line (tp = 8/20µs).
Replacement for MLV (0805).
Bidirectional Configuration.
Protects One Power or I/O Port.
Available in 8V & 12V.
ESD Protection > 25kV.
