PAM2306, Dual High-Efficiency PWM Step-Down DC-DC Coverter

Dual High-Efficiency PWM Step-Down DC-DC Coverter PAM2306 .
The PAM2306 is a dual step-down current-mode, DC-DC converter.

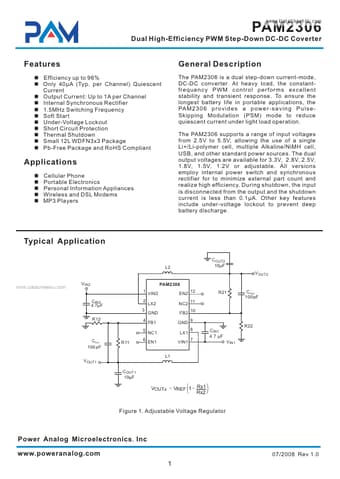

datasheet Preview Page 1 from Datasheet4u.com

PAM2306_PowerAnalogMicoelectronics.pdf

PAM2306 Datasheet Preview — Preview of PAM2306 PDF

Datasheet Details

Part number:

PAM2306

Manufacturer:

Power Analog Micoelectronics

File Size:

444.12 KB

Description:

Dual High-Efficiency PWM Step-Down DC-DC Coverter

Features

* n Efficiency up to 96% n Only 40μA (Typ. per Channel) Quiescent Current n Output Current: Up to 1A per Channel n Internal Synchronous Rectifier n 1.5MHz Switching Frequency n Soft Start n Under-Voltage Lockout n Short Circuit Protection n Thermal Shutdown n Small 12L WDFN3x3 Package n Pb-Free Packag

Applications

* the PA M 2 3 0 6 p r o v i d e s a p o w e r - s a v i n g P u l s e Skipping Modulation (PSM) mode to reduce quiescent current under light load operation. The PAM2306 supports a range of input voltages from 2.5V to 5.5V, allowing the use of a single Li+/Li-polymer cell, multiple Alkaline/NiMH cell
