PAM2306D DUAL HIGH-EFFICIENCY PWM STEP-DOWN DC-DC CONVERTER

PAM2306D Description

Green PAM2306D DUAL HIGH-EFFICIENCY PWM STEP-DOWN DC-DC CONVERTER .
The PAM2306D is a dual step-down current mode, DC-DC converter.

PAM2306D Features

* include under-voltage lockout to prevent deep battery discharge. Features
* Efficiency up to 96%
* Only 40μA (Typ per Channel) Quiescent Current
* Output Current: Up to 1A per Channel
* Internal Synchronous Rectifier
* 1.5MHz Switching Frequency
* Sof

PAM2306D Applications

* the PAM2306D provides a powersaving Pulse-Skipping Modulation (PSM) mode to reduce quiescent current under light load operation. Pin Assignments The PAM2306D supports a range of input voltages from 2.5V to 5.5V, allowing the use of a single Li+/Li-polymer cell, multiple Alkaline/NiMH cell, USB, a

📥 Download Datasheet

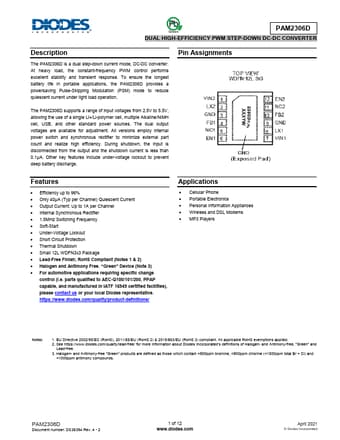

Preview of PAM2306D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM2306D
Manufacturer
DIODES ↗
File Size
534.83 KB
Datasheet
PAM2306D-Diodes.pdf
Description
DUAL HIGH-EFFICIENCY PWM STEP-DOWN DC-DC CONVERTER
