PPM8PN03R10 - P-Channel MOSFET

Prisemi

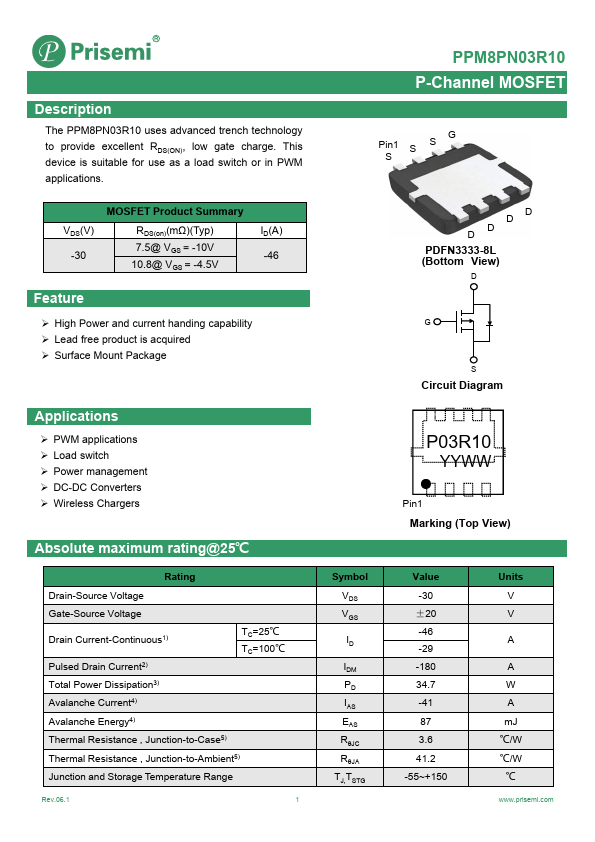

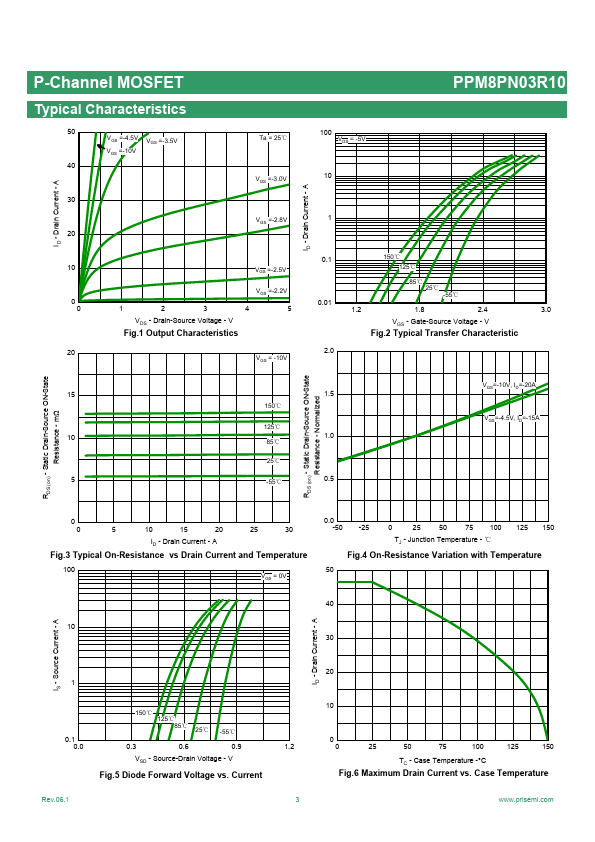

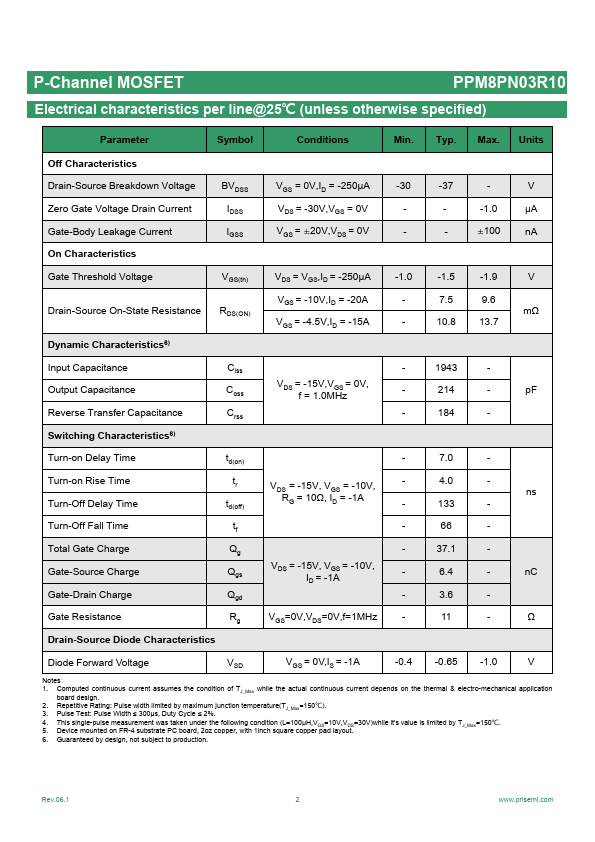

PPM8PN03R10 Datasheet Preview — Preview of PPM8PN03R10 PDF

Datasheet Details

Part number	PPM8PN03R10
Manufacturer	Prisemi
File Size	468.85 KB
Description	P-Channel MOSFET
Datasheet	PPM8PN03R10-Prisemi.pdf

PPM8PN03R10 Product details

Description

The PPM8PN03R10 uses advanced trench technology to provide excellent RDS(ON), low gate charge. High Power and current handing capability Lead free product is acquired Surface Mount Package Applications PWM applications Load switch Power management DC-DC Converters Wirele
