PPM8PN02R8 - P-Channel MOSFET

Prisemi

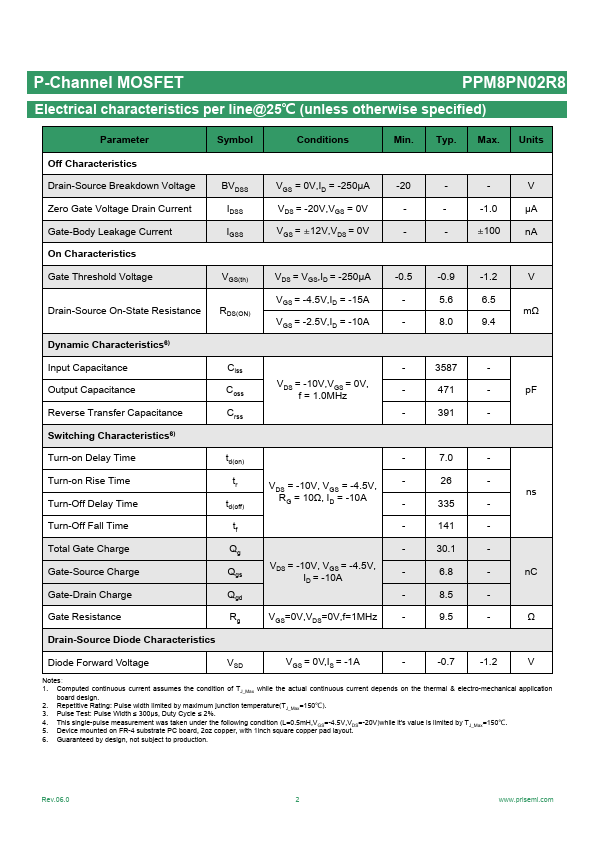

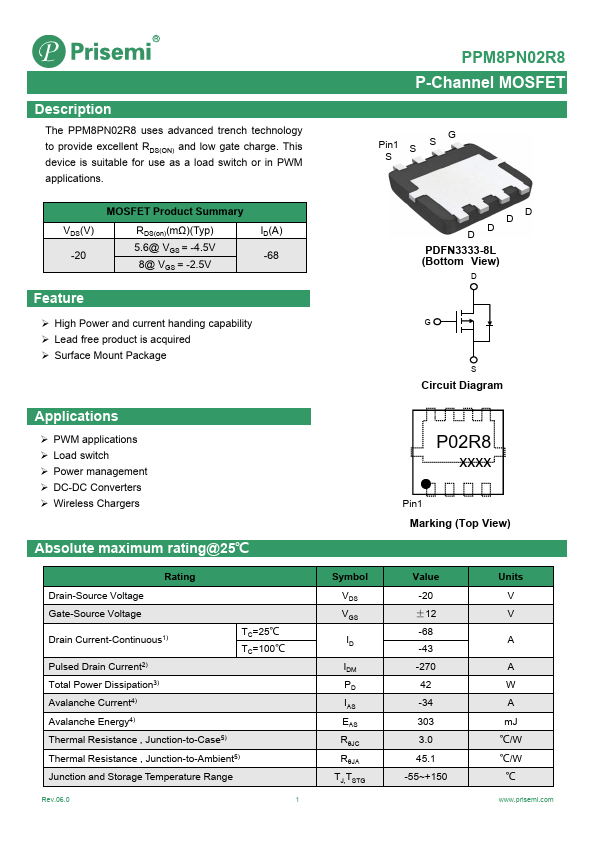

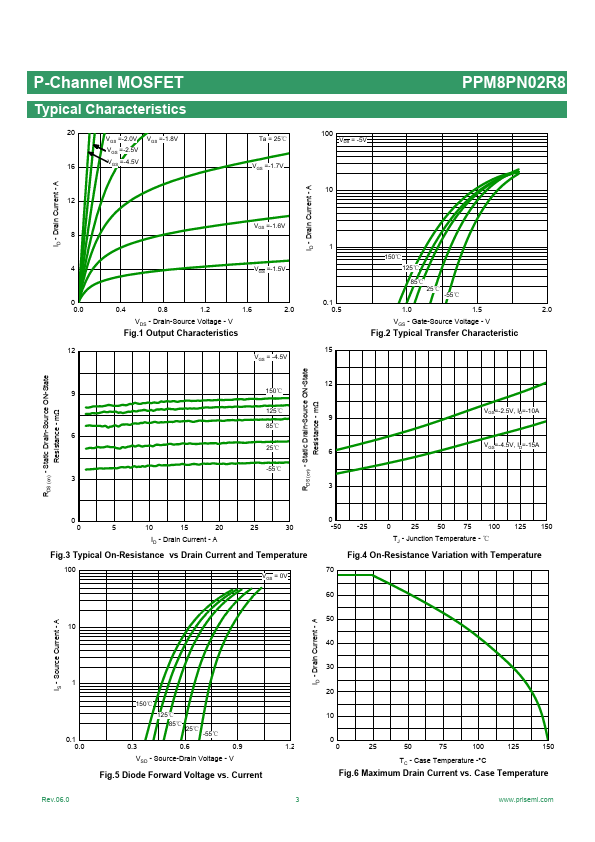

PPM8PN02R8 Datasheet Preview — Preview of PPM8PN02R8 PDF

Datasheet Details

Part number	PPM8PN02R8
Manufacturer	Prisemi
File Size	477.96 KB
Description	P-Channel MOSFET
Datasheet	PPM8PN02R8-Prisemi.pdf

PPM8PN02R8 Product details

Description

The PPM8PN02R8 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. High Power and current handing capability Lead free product is acquired Surface Mount Package Applications PWM applications Load switch Power management DC-DC Converters Wirele
