PAM2701, 4-Channel Regulated Charge Pump White LED Driver

PAM2701 4-Channel Regulated Charge Pump White LED Driver .
The PAM2701 is a 4-channel charge pump white LED driver, capable of driving up to 4 LEDs in parallel.

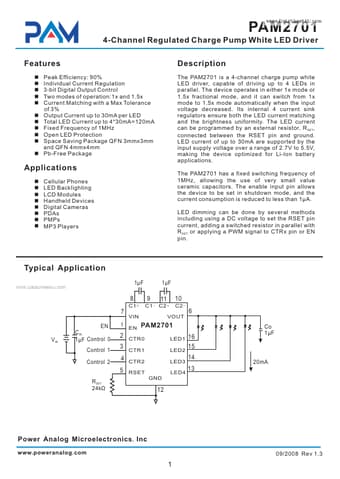

datasheet Preview Page 1 from Datasheet4u.com

PAM2701_PowerAnalogMicoelectronics.pdf

PAM2701 Datasheet Preview — Preview of PAM2701 PDF

Datasheet Details

Part number:

PAM2701

Manufacturer:

Power Analog Micoelectronics

File Size:

423.66 KB

Description:

4-Channel Regulated Charge Pump White LED Driver

Applications

* The PAM2701 has a fixed switching frequency of 1MHz, allowing the use of very small value ceramic capacitors. The enable input pin allows the device to be set in shutdown mode, and the current consumption is reduced to less than 1μA. LED dimming can be done by several methods including using a DC v
