PMW3310DH-AWQT - Low Power LED Gaming Mouse Sensor

Name: PMW3310DH-AWQT
SKU: PMW3310DH-AWQT-950091

PixArt

The PMW3310DH-AWQT by PixArt is a Low Power LED Gaming Mouse Sensor. Below is the official datasheet preview.

Datasheet Details

Part number	PMW3310DH-AWQT
Manufacturer	PixArt
File Size	1.23 MB
Description	Low Power LED Gaming Mouse Sensor
Datasheet	PMW3310DH-AWQT-PixArt.pdf

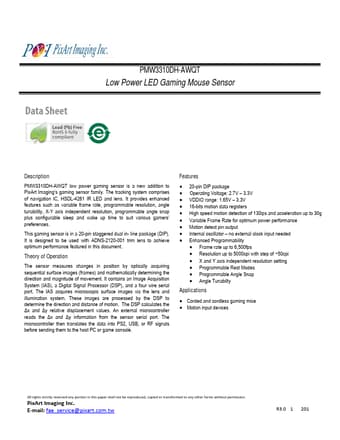

Additional preview pages of the PMW3310DH-AWQT datasheet.

PMW3310DH-AWQT low power gaming sensor is a new addition to PixArt Imaging’s gaming sensor family.

such as variable frame rate, programmable resolution, angle tunability, X-Y axis independent resolution, programmable angle snap plus configurable sleep and wake up time to suit various gamers’ preferences. This gaming sensor is in a 20-pin staggered dual in- line package (DIP). It is designed to be used with ADNS-2120-001 trim lens to achieve optimum performance featured in this document. Theory of Operation The sensor measures changes in position by optically acquiring sequential surface image.
