TDA0555D - TIMER

TDA0555D Description

Preliminary Ii TDA0555,D II TIMER TheTDA0555D is a monolithic timer, equivalent to the NE555, however it is mounted in a miniature plastic package.

TDA0555D Features

* Timing from microseconds to hours
* Operates in both astable and monostable modes
* Adjustable duty factor
* Output can source or sink 200 rnA
* Output and supply TTL compatible'
* Temperature stability 0, 005%;oC
* Normally-on and normally-o

📥 Download Datasheet

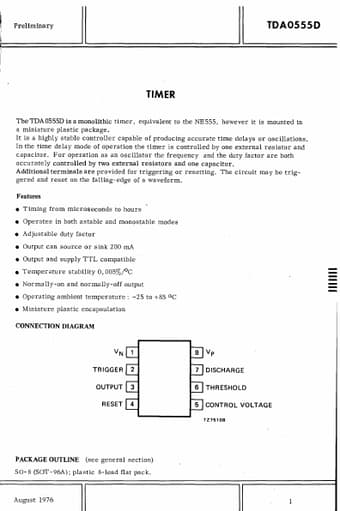

Preview of TDA0555D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA0555D
Manufacturer
Philips
File Size
100.38 KB
Datasheet
TDA0555D-Philips.pdf
Description
TIMER
