TDA0723D - PRECISION VOLTAGE REGULATOR

TDA0723D Description

Preliminary II TDA0723D PRECISION VOLTAGE REGULATOR The TDA0723D is a monolithic precision voltage regulator.The circuit is equivalent to the IlA7.

TDA0723D Features

* Positive and negative supply operation.
* Line and load regulation
* Temperature coefficient of the output voltage: typo 0,003 %per °c
* Input voltage range: 9,5 to 40 V
* Output voltage range: 2 to 37 V
* Operating ambient temperature: - 25 to +85 °

TDA0723D Applications

* The circuit contains a temperature compensated reference amplifier, an error amplifier, a power series pass transistor and a current limiting circuit with access to remote shut down. The device can be used with positive or negative supply voltages as a series, shunt, switching or floating regulator

📥 Download Datasheet

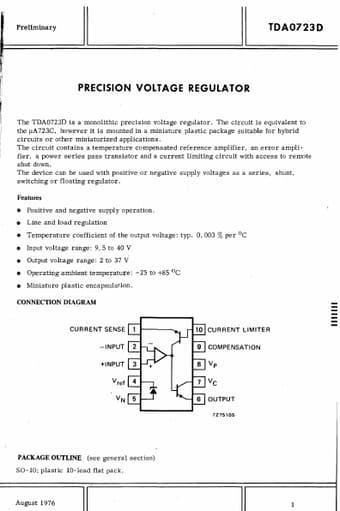

Preview of TDA0723D PDF
