TD1311AF, TD1316ALF - (TD1300A(L)F) Tuner Modules

Philips

📥 Download Datasheet

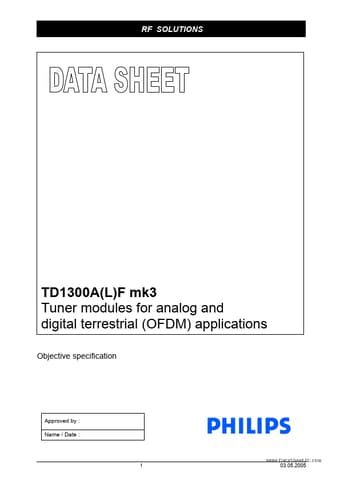

TD1311AF Datasheet Preview — This datasheet PDF includes multiple part numbers: TD1311AF, TD1316ALF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TD1311AF, TD1316ALF
Manufacturer	Philips
File Size	909.15 KB
Description	(TD1300A(L)F) Tuner Modules
Datasheet	TD1316ALF_Philips.pdf
Note	This datasheet PDF includes multiple part numbers: TD1311AF, TD1316ALF. Please refer to the document for exact specifications by model.

TD1311AF Product details

Description

TD1300A(L)F-3 TD1300ALF-3 belong to the 3rd generation of terrestrial tuners designed to cope with digital COFDM and analog transmission standards.From function point-of-view these tuners can be divided into two high-frequency sections, a RFloopthrough and a single conversion tuner part.In the loopthrough section broadband low-noise amplifiers are used.The loopthrough frequency response covers the entire frequency range from VHF to UHF.The RF-downstream section is equipped with a state-of-

Features

Highly integrated single conversion tuner with active loopthrough Versions for different frequency ranges available +5V supply voltage only; no external tuning voltage required DC.
power output through RF-input connector (e. g. indoor antenna supply) Superior low noise and high sensitivity performance Tuners are suitable for analog and digital.
