PI74LPT16646 - Fast CMOS 3.3V 16-Bit Registered Transceivers

Pericom Semiconductor

The PI74LPT16646 by Pericom Semiconductor is a Fast CMOS 3.3V 16-Bit Registered Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

PI74LPT16646 Fast CMOS 3.3V 16-Bit Registered Transceivers by Pericom Semiconductor - Datasheet Preview — Official preview page of the **PI74LPT16646** Fast CMOS 3.3V 16-Bit Registered Transceivers datasheet (Pericom Semiconductor).

Datasheet Details

Part number	PI74LPT16646
Manufacturer	Pericom Semiconductor
File Size	81.30 KB
Description	Fast CMOS 3.3V 16-Bit Registered Transceivers
Datasheet	PI74LPT16646_PericomSemiconductor.pdf

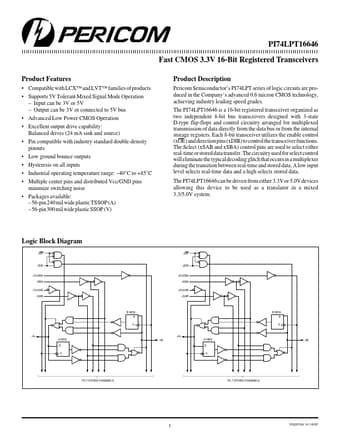

Additional preview pages of the PI74LPT16646 datasheet.

PI74LPT16646 Product details

Description

Pericom Semiconductor’s PI74LPT series of logic circuits are produced in the Company’s advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

Features

Compatible with LCX™ and LVT™ families of products.
Supports 5V Tolerant Mixed Signal Mode Operation.
Input can be 3V or 5V.
Output can be 3V or connected to 5V bus.
Advanced Low Power CMOS Operation.
Excellent output drive capability: Balanced drives (24 mA sink and source).
Pin compatible with industry standard double-density pinouts.
Low ground bounce outputs.
Hysteresis on all inputs.
Industrial operat.
