PI74LPT16245 - Fast CMOS 3.3V 16-Bit Bidirectional Transceiver

Pericom Semiconductor Corporation

The PI74LPT16245 by Pericom Semiconductor Corporation is a Fast CMOS 3.3V 16-Bit Bidirectional Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

PI74LPT16245 Fast CMOS 3.3V 16-Bit Bidirectional Transceiver by Pericom Semiconductor Corporation - Datasheet Preview — Official preview page of the **PI74LPT16245** Fast CMOS 3.3V 16-Bit Bidirectional Transceiver datasheet (Pericom Semiconductor Corporation).

Datasheet Details

Part number	PI74LPT16245
Manufacturer	Pericom Semiconductor Corporation
File Size	58.06 KB
Description	Fast CMOS 3.3V 16-Bit Bidirectional Transceiver
Datasheet	PI74LPT16245_PericomSemiconductorCorporation.pdf

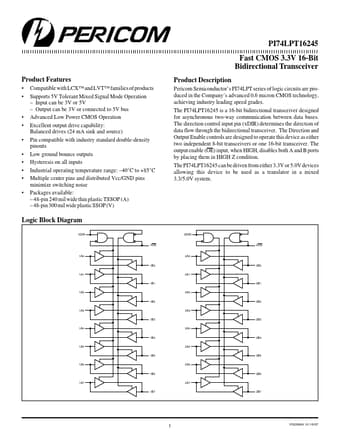

Additional preview pages of the PI74LPT16245 datasheet.

PI74LPT16245 Product details

Description

Pericom Semiconductor’s PI74LPT series of logic circuits are produced in the Company’s advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

Features

Compatible with LCX™ and LVT™ families of products Supports 5V Tolerant Mixed Signal Mode Operation.
Input can be 3V or 5V.
Output can be 3V or connected to 5V bus Advanced Low Power CMOS Operation Excellent output drive capability: Balanced drives (24 mA sink and source) Pin compatible with industry standard double-density pinouts Low ground bounce outputs Hysteresis on all inputs Industrial operating temperature range:.
40°C to +85°C Multiple cente.
