PI74LPT16244 - 3.3V/ 16-Bit Buffer/Line Driver

Pericom Semiconductor Corporation

The PI74LPT16244 by Pericom Semiconductor Corporation is a 3.3V/ 16-Bit Buffer/Line Driver. Below is the official datasheet preview.

📥 Download Datasheet

PI74LPT16244 3.3V/ 16-Bit Buffer/Line Driver by Pericom Semiconductor Corporation - Datasheet Preview — Official preview page of the **PI74LPT16244** 3.3V/ 16-Bit Buffer/Line Driver datasheet (Pericom Semiconductor Corporation).

Datasheet Details

Part number	PI74LPT16244
Manufacturer	Pericom Semiconductor Corporation
File Size	137.07 KB
Description	3.3V/ 16-Bit Buffer/Line Driver
Datasheet	PI74LPT16244_PericomSemiconductorCorporation.pdf

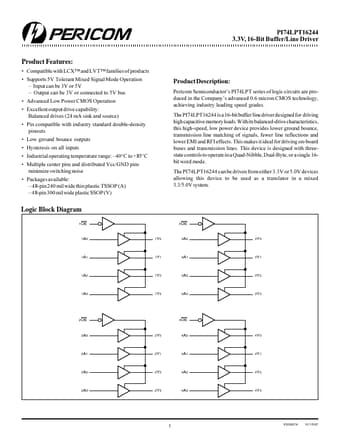

Additional preview pages of the PI74LPT16244 datasheet.

PI74LPT16244 Product details

Description

Pericom Semiconductors PI74LPT series of logic circuits are produced in the Companys advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

Features

Compatible with LCX and LVT families of products Supports 5V Tolerant Mixed Signal Mode Operation Input can be 3V or 5V Output can be 3V or connected to 5V bus Advanced Low Power CMOS Operation Excellent output drive capability: Balanced drives (24 mA sink and source) Pin compatible with industry standard double-density pinouts Low ground bounce outputs Hysteresis on all inputs Industrial operating temperature range: 40°C to +85°C Multiple center pins and distributed Vc.
