PI5C3861 Datasheet - Pericom Semiconductor

PI5C3861 2-Port Bus Switch

Pericom Semiconductor’s PI5C series of logic circuits are produced in the Company’s advanced submicron CMOS technology, achieving industry leading performance. The PI5C3861 is a 10-bit, 2-port bus switch designed with a low ON resistance (5-ohm) allowing inputs to be connected directly to outputs. .

PI5C3861 Features

* Near zero propagation delay

* 5-ohm switches connect inputs to outputs

* Direct bus connection when switches are ON

* Ultra Low Quiescent Power (0.2 µA Typical)

* Ideally suited for notebook applications

* Package: 24-pin, 150-mil wide plastic QSOP

PI5C3861 Datasheet (37.20 KB)

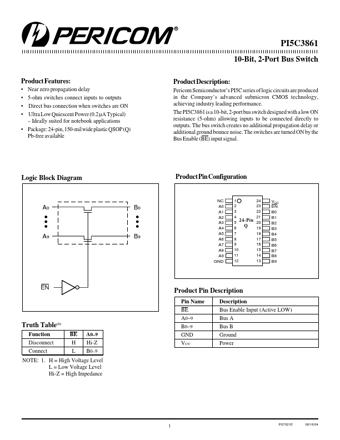

Preview of PI5C3861 PDF
PI5C3861 Datasheet Preview Page 2 PI5C3861 Datasheet Preview Page 3

Datasheet Details

Part number:

PI5C3861

Manufacturer:

Pericom Semiconductor

File Size:

37.20 KB

Description:

2-port bus switch.
