2SK4174 - Silicon N-channel enhancement MOS FET

Panasonic

Datasheet Details

Part number	2SK4174
Manufacturer	Panasonic
File Size	297.18 KB
Description	Silicon N-channel enhancement MOS FET

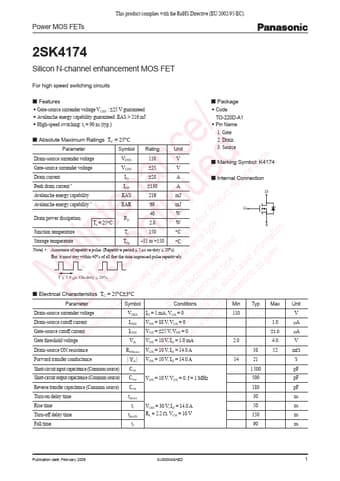

Datasheet	2SK4174-Panasonic.pdf

s.
Gate-source surrender voltage VGSS : ±25 V guaranteed.
Avalanche energy capability guaranteed: EAS > 216 mJ.
High-speed switching: tf = 90 ns (typ. ).
Absolute Maximum Ratings TC = 25°C Parameter Symbol Rating Unit Drain-source surrender voltage Gate-source surrender voltage Drain current Peak drain current.
Avalanche energy capability VDSS VGSS ID IDP EAS 110 ±25 ±28 ±130 216 V V A A mJ Avalanche energy capability.
EAR 69 mJ 40 W Drain p.
