2SK1606 - Field Effect Transistors

Panasonic

Key Features

q High avalanche energy capacity q VGSS: 30V guaranteed q Low RDS(on), high-speed switching characteristic unit: mm 0.7±0.1 10.0±0.2 5.5±0.2 2.7±0.2 4.2±0.2 4.2±0.2 s.

2SK1606 field effect transistors by Panasonic - Datasheet Preview

Datasheet Details

Part number	2SK1606
Manufacturer	Panasonic
File Size	66.46 KB
Description	Field Effect Transistors
Datasheet	2SK1606 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SK1606	N-Channel MOSFET Transistor	Inchange Semiconductor
2SK160	N-Channel FET	NEC
2SK1600	N-Channel MOSFET Transistor	Inchange Semiconductor
2SK1600	Silicon N-Channel MOSFET	Toshiba Semiconductor
2SK1601	N-Channel MOSFET Transistor	Inchange Semiconductor

Other Datasheets by Panasonic

Part Number	Description
2SK1030	Silicon N-Channel Power F-MOS FET
2SK1030A	Silicon N-Channel Power F-MOS FET
2SK1803	Silicon N-Channel MOSFET
2SK1833	Silicon N-Channel MOSFET
2SK1834	Silicon N-Channel Power F-MOS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

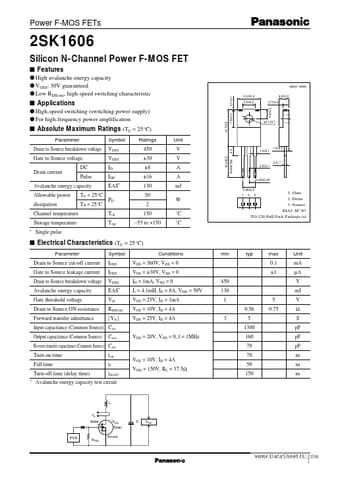

Power F-MOS FETs 2SK1606 www.DataSheet4U.com Silicon N-Channel Power F-MOS FET s Features q High avalanche energy capacity q VGSS: 30V guaranteed q Low RDS(on), high-speed switching characteristic unit: mm 0.7±0.1 10.0±0.2 5.5±0.2 2.7±0.2 4.2±0.2 4.2±0.2 s Applications 16.7±0.3 7.5±0.2 q High-speed switching (switching power supply) q For high-frequency power amplification φ3.1±0.1 s Absolute Maximum Ratings (TC = 25°C) Parameter Drain to Source breakdown voltage Gate to Source voltage Drain current DC Pulse Symbol VDSS VGSS ID IDP EAS* PD Tch Tstg Ratings 450 ±30 ±8 ±16 130 50 2 150 −55 to +150 Unit V V A A mJ 4.0 1.4±0.1 1.3±0.2 14.0±0.5 Solder Dip 0.5 +0.2 –0.1 0.8±0.1 2.54±0.25 5.08±0.
