OH10010 - GaAs Hall Device

OH10010 Description

GaAs Hall Devices OH10010 GaAs Hall Device Magnetic sensor I .

OH10010 Features

* Hall voltage: typ. 105 mV (VC = 6 V, B = 0.1 T)
* Input resistance: typ. 0.75 kΩ
* Satisfactory linearity of GaAs hall voltage with respect to the magnetic field
* Small temperature coefficient of the hall voltage: β ≤
* 0.06%/°C
* Mini type (4-pin)

OH10010 Applications

* Various hall motor (VCR, phonograph, VD, CD, and FDD)
* Automotive equipment
* Industrial equipment
* Applicable to wide-varying field (OA equipment, etc. ) 1 : VH Output (
* ) side 2 : VC Input (
* ) side 3 : VH Output (+) side 4 : VC Input (+) side Min

📥 Download Datasheet

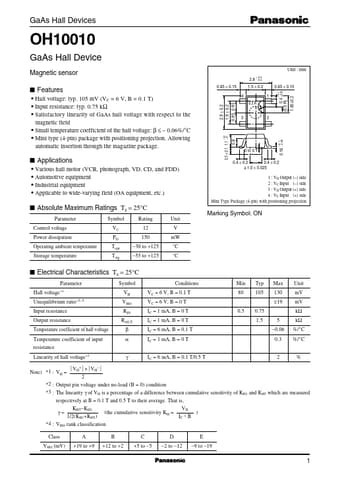

Preview of OH10010 PDF
datasheet Preview Page 2
